ECG Watch vs. PPG Watch for Medical Monitoring: Which Technology Is Right for Your Application? When evaluating wearable health monitoring devices for clinical, corporate wellness, or telehealth applications, one of the most critical technical decisions is choosing between ECG (electrocardiogram) and PPG (photoplethysmography) sensor technology. Both have legitimate use cases, but their accuracy, cost, and regulatory pathways differ significantly.

Understanding the Core Technologies

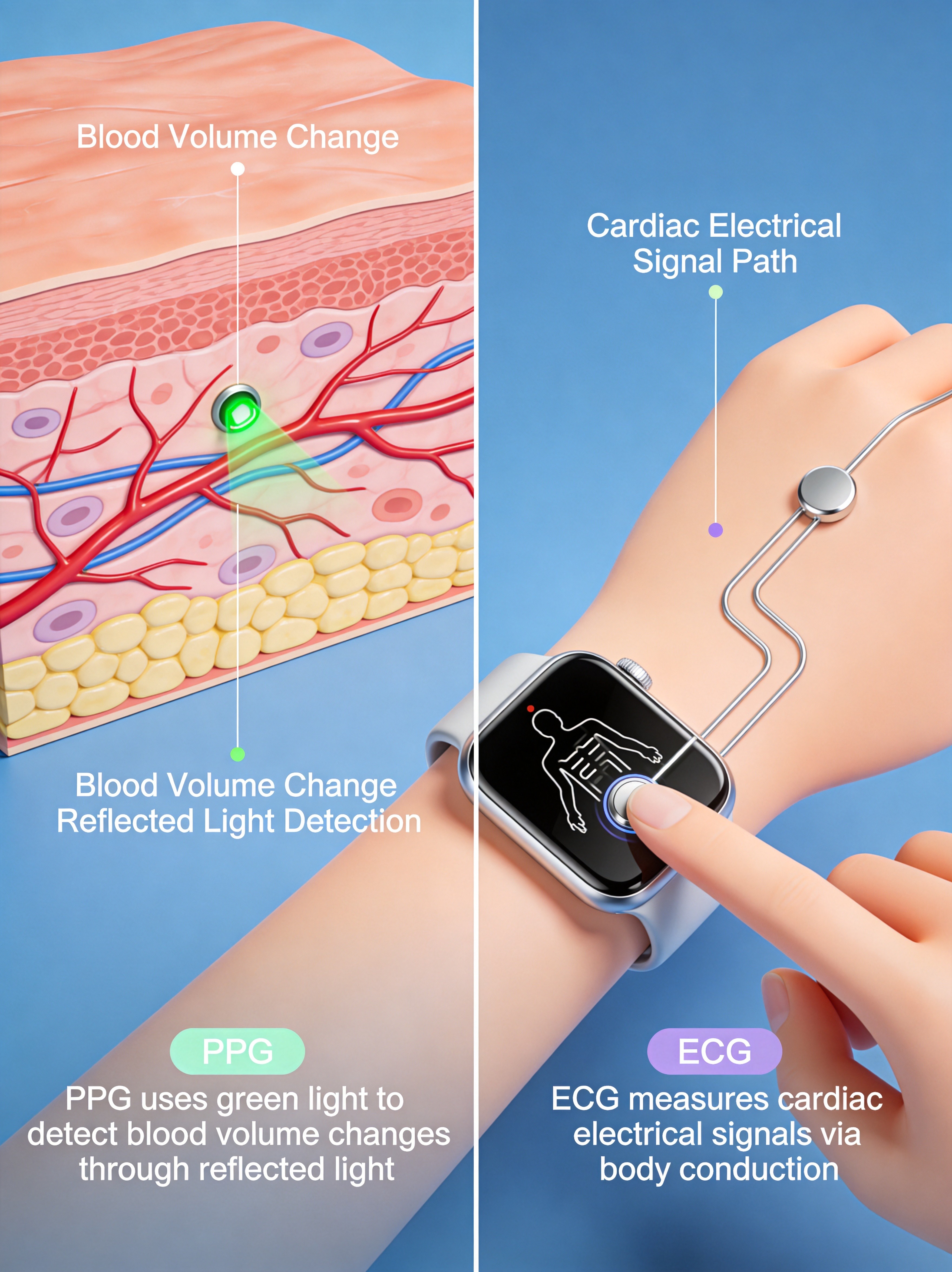

What Is PPG (Photoplethysmography)?

PPG uses optical sensors — typically green and infrared LEDs — to measure blood volume changes in the microvascular bed of tissue. When light hits the skin, the amount of light absorbed or reflected changes with each heartbeat as blood pulses through the vessels. PPG measures: Heart rate (continuous, 24/7), Heart rate variability (HRV), Blood oxygen saturation (SpO2), Basic sleep staging. PPG limitations: Cannot generate ECG waveforms, susceptible to motion artifacts, less accurate for arrhythmia detection, cannot measure electrical heart activity.

What Is ECG (Electrocardiogram)?

ECG measures the electrical activity of the heart directly using electrodes. In wearable devices, this is typically single-lead ECG: the user touches an electrode on the watch case with their finger, while a second electrode on the back of the device contacts the wrist. ECG measures: Heart rate (during active measurement), Atrial fibrillation (AFib) detection, Heart rhythm patterns, ECG waveform generation (clinical-grade PDF reports), PVC (premature ventricular contraction) detection. ECG limitations: Requires active measurement (not continuous), user must hold still for 30 seconds, single-lead only (vs. 12-lead in clinical ECG), higher component cost.

Accuracy Comparison

Metric	PPG	ECG
Heart rate (resting)	±2-5 BPM	±1 BPM
Heart rate (during exercise)	±5-10 BPM	N/A (spot check)
AFib detection	Limited	Clinical-grade
Arrhythmia screening	Not recommended	FDA-cleared
Continuous monitoring	Yes (24/7)	No (spot check only)
SpO2 measurement	Yes	No
Waveform output	No	Yes (PDF report)

Use Case Recommendations

Choose PPG When:

• Corporate wellness programs: Continuous activity and heart rate tracking is more valuable than clinical-grade spot checks
• Consumer fitness: Cost-sensitive applications where arrhythmia detection is not required
• Sleep monitoring: PPG excels at overnight heart rate and SpO2 trends
• Large-scale deployment: Lower per-unit cost enables wider population coverage

Choose ECG When:

• Hospital outpatient monitoring: Clinical-grade cardiac screening is essential
• Elderly care facilities: AFib prevalence in seniors makes arrhythmia detection critical
• Telehealth and RPM programs: Reimbursable remote patient monitoring often requires ECG capability
• Post-cardiac event follow-up: Patients recovering from cardiac events need rhythm monitoring
• Clinical trials: Regulatory submissions typically require ECG data, not PPG estimates

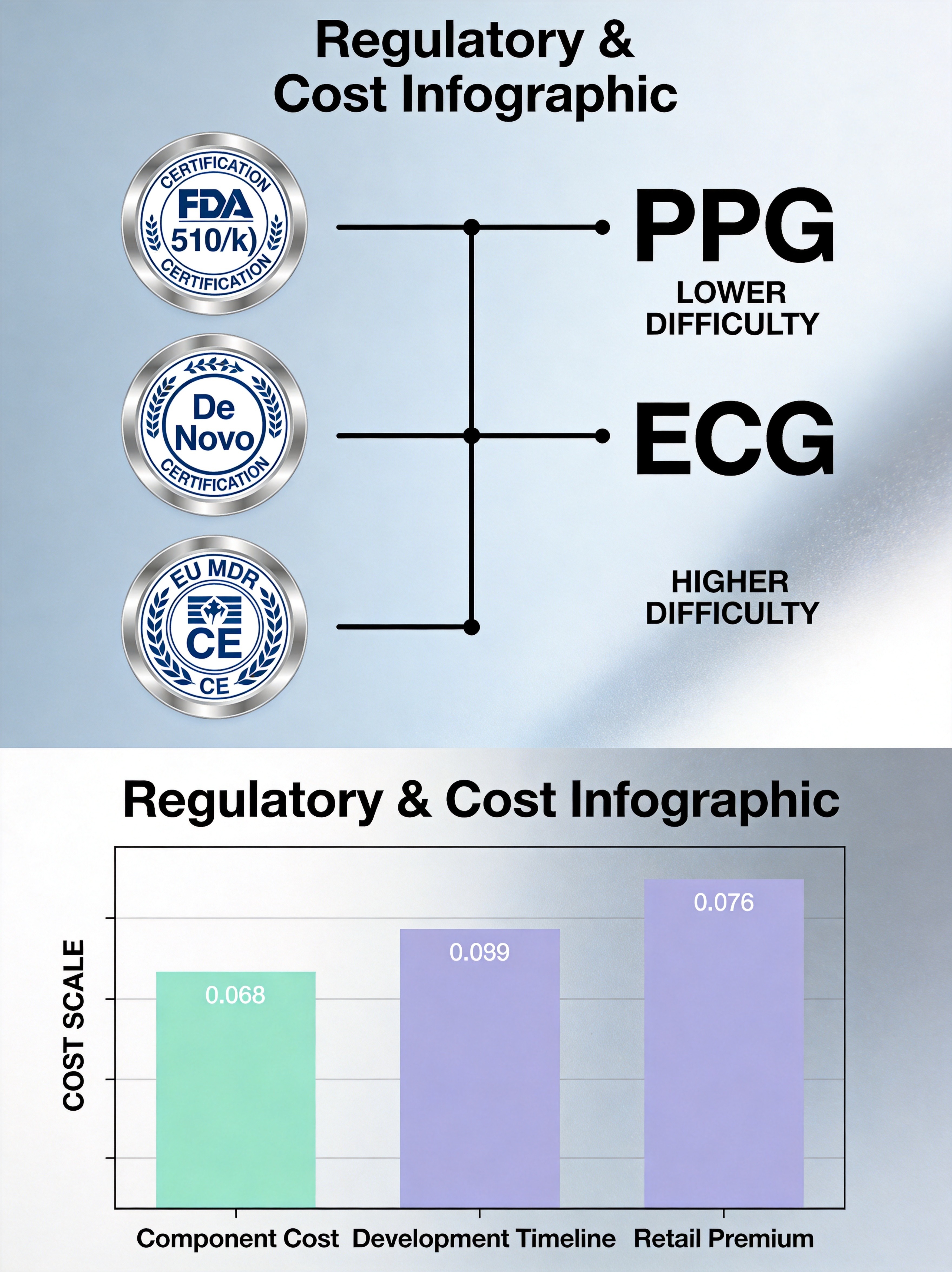

Regulatory Considerations

PPG-based devices are generally classified as Class I or Class II medical devices, depending on claims. SpO2 monitoring via PPG requires FDA 510(k) clearance if medical-grade accuracy is claimed. ECG-based devices with AFib detection are typically FDA De Novo or 510(k) cleared. CE certification under MDR (Medical Device Regulation) is required for European markets.

Cost Comparison

Factor	PPG Solution	ECG Solution
Component cost (per unit)	$2-5	$8-15
Certification cost	Lower	Higher (clinical validation required)
Development timeline	3-4 months	6-8 months
Retail price premium	Baseline	+30-50%

The Hybrid Approach

Many modern medical wearables — including Geyan Technology Innovation ECG smart watch line — combine both technologies: PPG for continuous 24/7 heart rate, SpO2, and sleep monitoring; ECG for on-demand clinical-grade cardiac screening. This dual-sensor approach provides the best of both worlds: continuous background monitoring plus clinical-grade spot checks when needed.

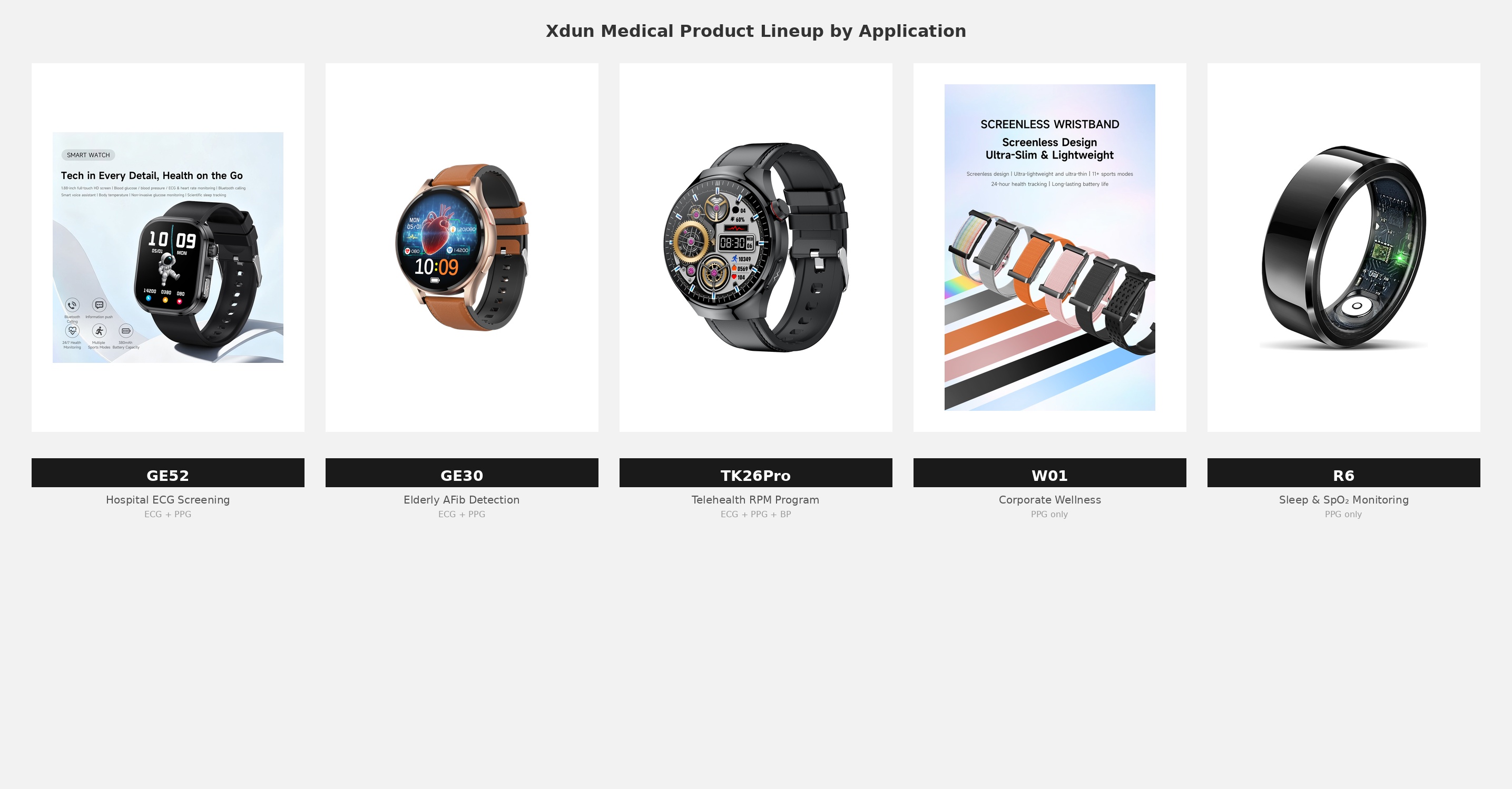

Recommended Geyan Technology Innovation Products by Use Case

Application	Recommended Model	Sensor
Hospital outpatient ECG screening	GE52 ECG Smart Watch	ECG + PPG
Elderly care AFib detection	GE30 ECG Smart Watch	ECG + PPG
Corporate wellness (cost-sensitive)	W01 Smart Band	PPG only
Telehealth RPM program	TK26Pro ECG Smart Watch	ECG + PPG + BP
Sleep and SpO2 monitoring	Smart Ring R6	PPG only

Conclusion

There is no universal “better” technology — the right choice depends on your clinical requirements, target population, budget, and regulatory pathway. For applications where cardiac arrhythmia screening matters, ECG is non-negotiable. For general wellness and activity tracking, PPG delivers excellent value at lower cost.

Frequently Asked Questions

Can a single device include both ECG and PPG?

Yes. Most advanced medical wearables — including Geyan Technology Innovation GE52, GE30, and TK26Pro — combine both sensors. PPG handles continuous monitoring while ECG provides on-demand clinical-grade readings.

Is PPG accurate enough for medical diagnosis?

PPG is suitable for wellness tracking and trend monitoring but is not sufficient for cardiac diagnosis. Clinical arrhythmia detection and diagnosis require ECG waveform data.

Does ECG monitoring require FDA clearance?

Yes. ECG-based devices with AFib detection claims require FDA 510(k) or De Novo clearance in the US market. Geyan Technology Innovation supports partners through the certification process.

What is the cost difference between PPG and ECG wearables?

ECG solutions typically cost 30-50% more at retail due to higher component costs ($8-15 vs $2-5 per unit) and additional clinical validation requirements.

Which technology is better for elderly care?

ECG is strongly recommended for elderly care due to the high prevalence of atrial fibrillation in seniors. Continuous PPG monitoring can supplement ECG with 24/7 heart rate and SpO2 tracking.

Can PPG detect sleep apnea?

PPG can detect SpO2 drops and heart rate variability patterns associated with sleep apnea, making it useful for screening. However, clinical sleep apnea diagnosis requires polysomnography (PSG).
