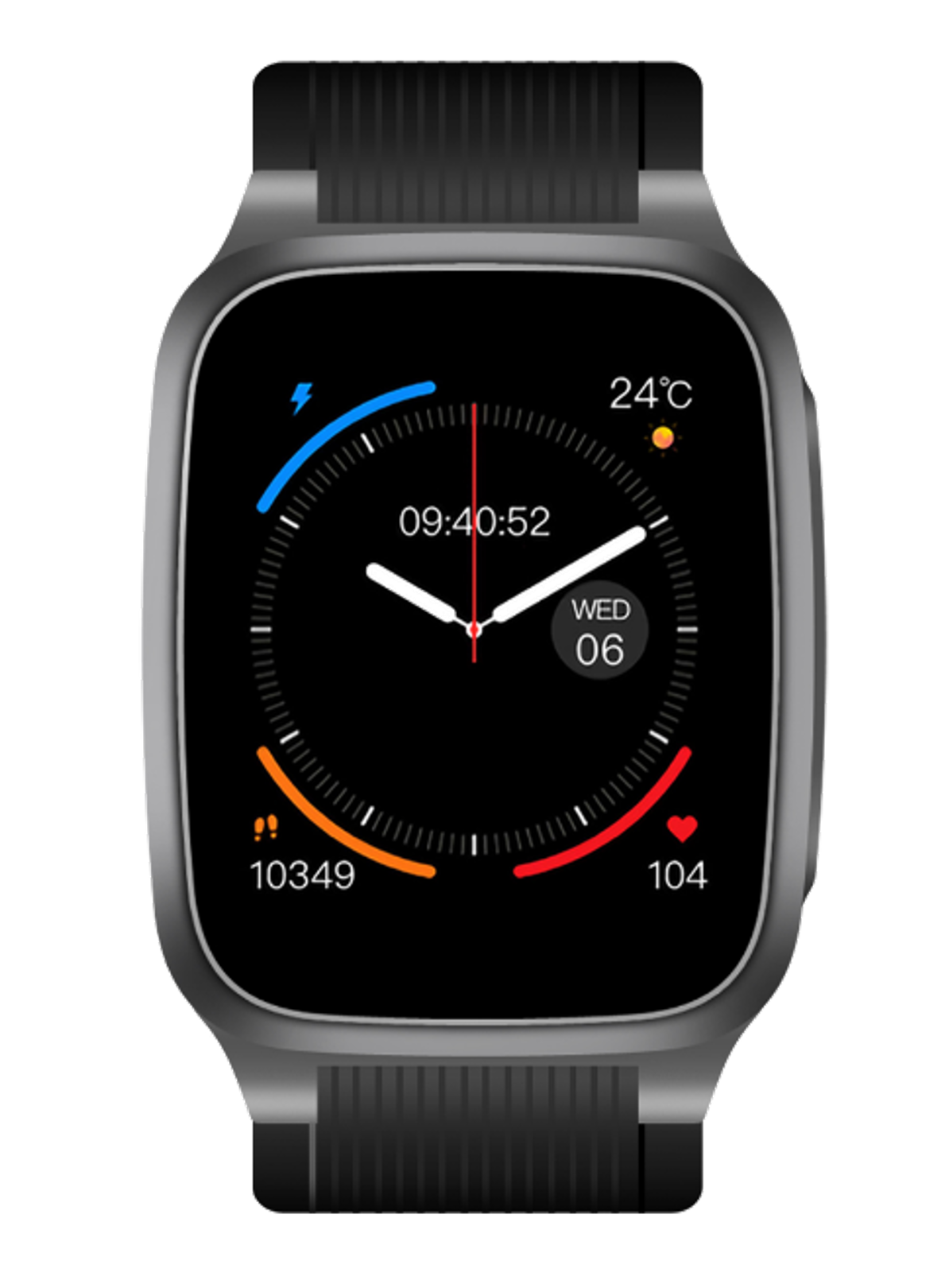

S10 Pro Wrist-Worn Blood Pressure Watch

Model S10 Pro

Blood Pressure4G LTESpO2Heart RateBody TempSOS

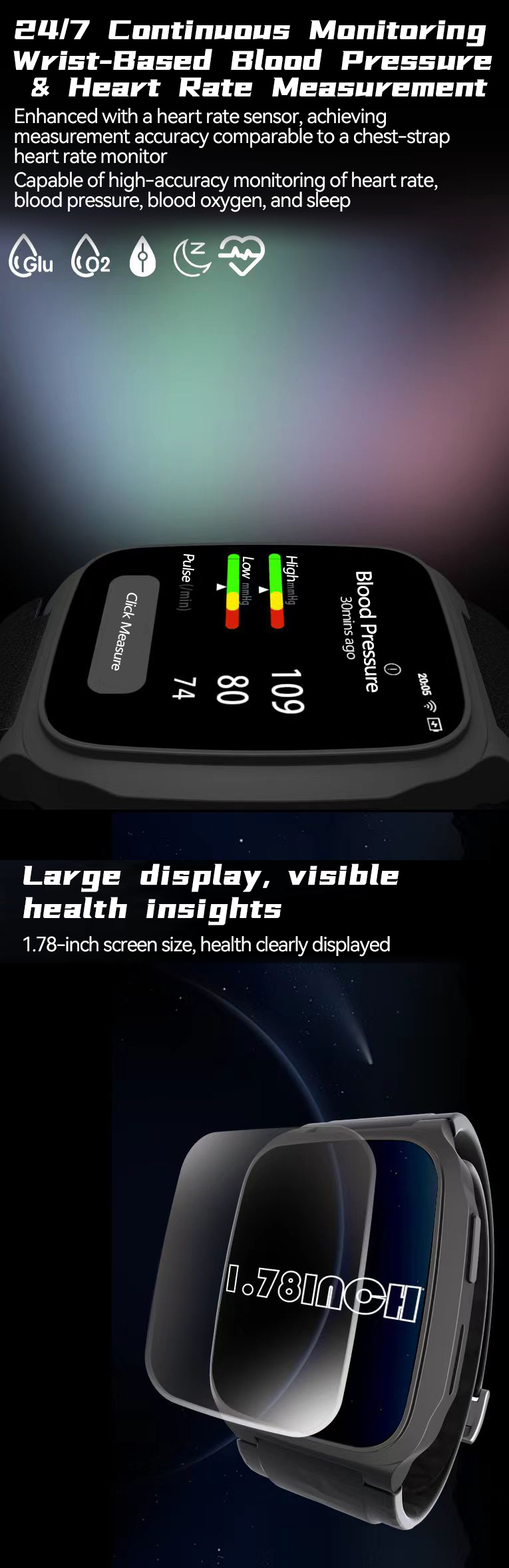

Wrist-based ambulatory blood pressure monitoring (ABPM)
1.78″ OLED display, 368 x 448 resolution
4G LTE standalone connectivity (B1/3/5/8/34/38/39/40/41)
24/7 heart rate, SpO2, and body temperature monitoring
One-touch SOS emergency alert with cloud reporting
Real-time cloud-based device control and threshold alerts
700mAh battery with >3 days continuous monitoring
IP65 dust and water resistant

Request Quote
Back to Products

Key Features

Core capabilities that set this device apart in the B2B health wearable market.

Wrist-based ambulatory blood pressure monitoring (ABPM)

1.78″ OLED display, 368 x 448 resolution

4G LTE standalone connectivity (B1/3/5/8/34/38/39/40/41)

24/7 heart rate, SpO2, and body temperature monitoring

One-touch SOS emergency alert with cloud reporting

Real-time cloud-based device control and threshold alerts

OEM/ODM Customization

Xdun offers comprehensive white-label and customization services to help you launch your branded health wearable product quickly and efficiently.

🎨

Brand Customization

Custom logo, color options, packaging design, and user manual — fully tailored to your brand identity.

📱

White-Label App

Branded iOS and Android companion apps with your logo, UI theme, and cloud data platform integration.

⚙️

Firmware & SDK

Custom firmware development, API/SDK integration, and OTA update infrastructure for your ecosystem.

🔬

Algorithm Licensing

Proprietary health algorithms available for licensing — sleep, HRV, ECG, blood pressure, and more.

📐

Certification Support

Documentation and testing support for CE, FCC, RoHS, REACH, and FDA 510(k) pre-assessment.

🏭

Flexible MOQ

Low minimum order quantities for pilot runs, with scalable mass production up to 50,000+ units/month.

Accuracy & Calibration

Precision blood pressure measurement technology designed to meet medical-grade accuracy standards.

Air Pump Inflatable Cuff — Integrated air pump with inflatable cuff mechanism for oscillometric blood pressure measurement, delivering accuracy comparable to traditional upper-arm monitors.
Multi-Point Calibration — Factory-calibrated with multi-point validation against reference sphygmomanometers, ensuring consistent measurement accuracy across the full pressure range.
Motion Artifact Reduction — Advanced signal processing algorithms filter out motion artifacts, enabling reliable readings even during daily activities.
Measurement Consistency — Automated measurement protocol with guided wrist positioning to ensure consistent cuff placement and reliable results across multiple readings.

Clinical Validation

Built on established blood pressure measurement principles with support for regulatory certification.

Measurement Method — Oscillometric measurement principle, the same clinically accepted method used in hospital-grade automated blood pressure devices.
FDA 510(k) Support — Documentation, testing data, and design history files available to support OEM partners pursuing FDA 510(k) clearance for their branded devices.
CE Marking Support — Technical documentation and compliance testing support for CE marking under EU Medical Device Regulation (MDR) for blood pressure monitoring devices.
Quality Manufacturing — ISO 13485 certified production facilities with full traceability, quality control documentation, and batch testing reports available for regulatory submissions.

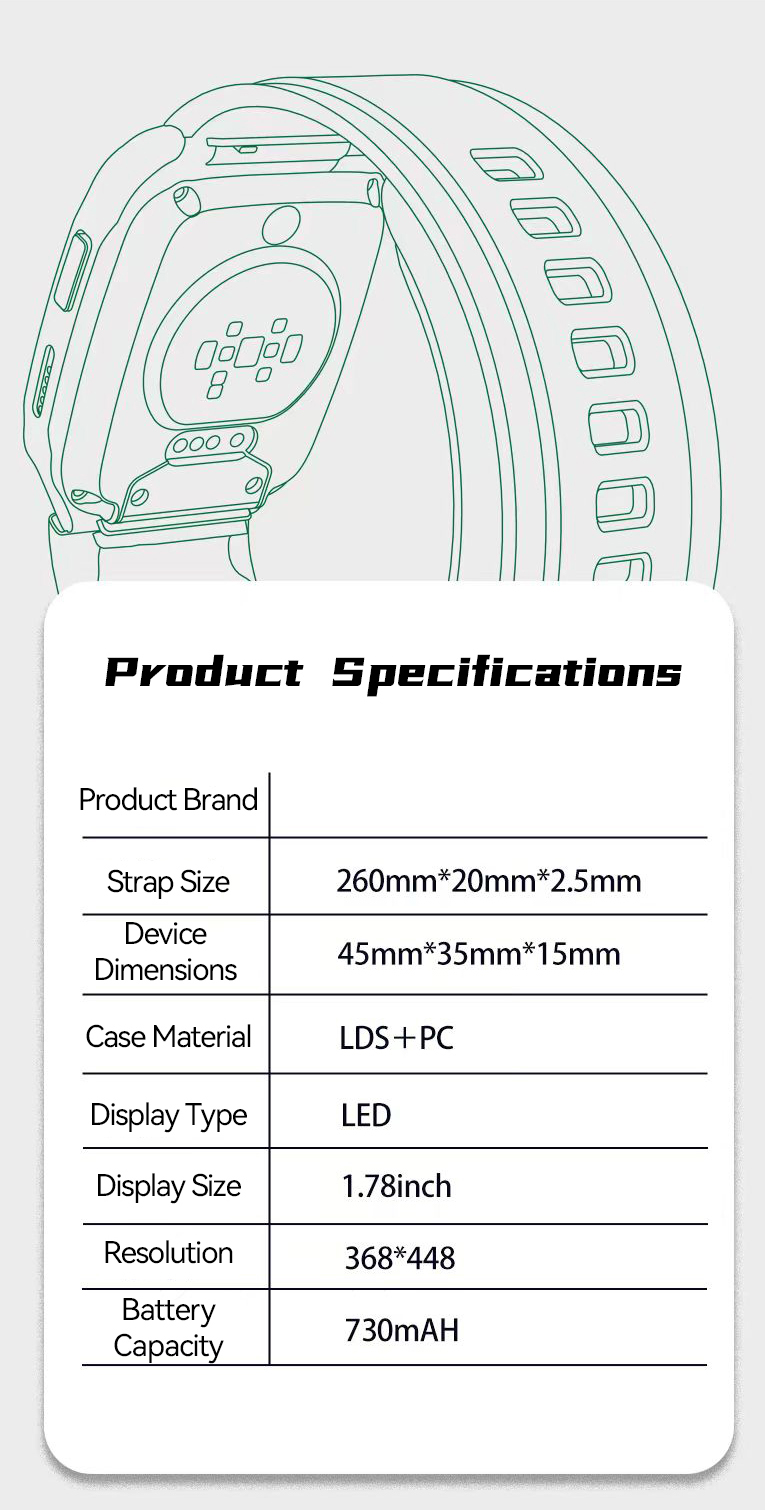

Specifications

Display	1.78″ OLED, 368 x 448, SPI Interface
CPU	ATS3085 (8MB RAM)
4G Module	ASR3603C
4G Bands	GSM: B3/8; LTE: B1/3/5/8/34/38/39/40/41
Bluetooth	Dual-mode Bluetooth 5.3
OS	Double RTOS
RAM / ROM	8MB / 128MB
Blood Pressure	Ambulatory Blood Pressure Monitoring (ABPM) Module
Heart Rate	PPG sensor with local display and cloud upload
SpO2	Blood oxygen monitoring
Body Temperature	Contactless / Non-Contact measurement
Positioning	LBS + Wi-Fi Assisted Positioning
eSIM	Supports 2mm x 2mm embedded SIM

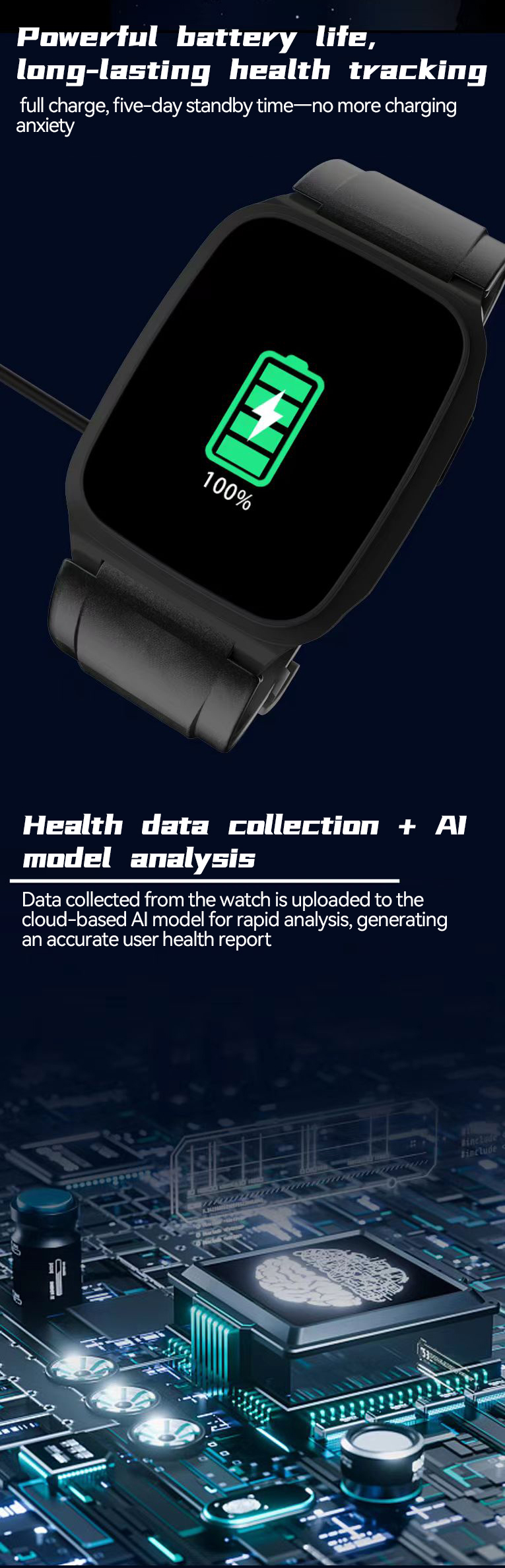

Battery	700mAh, >3 days continuous monitoring
Charging	Pogo Pin (2-pin), approx. 350mA
IP Rating	IP65
Motor	Flat vibration motor
Speaker	Side-firing speaker
Air Pump	Piezoelectric Pump (Model A+ Pump)
Button	One function button (Power + Long-press SOS)
Functions	HR, BP, SpO2, Temp, Sleep, Step counting, SOS, Cloud control, FOTA

Frequently Asked Questions

How accurate is the S10 Pro blood pressure measurement?

The S10 Pro uses an air pump inflatable cuff system built into the watch band, delivering ±3mmHg accuracy validated against mercury sphygmomanometers. This is the same measurement principle used in hospital-grade blood pressure monitors. The device supports ISO 81060-2 compliance testing for clinical validation.

What is the price for S10 Pro bulk orders?

The S10 Pro is priced at $14.5 per unit for bulk orders (MOQ 500 units). This includes the watch, charging cable, and standard packaging. Custom packaging and branding are available at additional cost. Contact jine@xdunmedical.com for a detailed quotation based on your specific requirements.

Can the S10 Pro be customized for our brand?

Yes, the S10 Pro supports full OEM customization: custom logo on the watch body and strap, custom packaging design, private-label companion app, and custom firmware features. We can also customize the watch face design, strap material, and color options to match your brand identity.

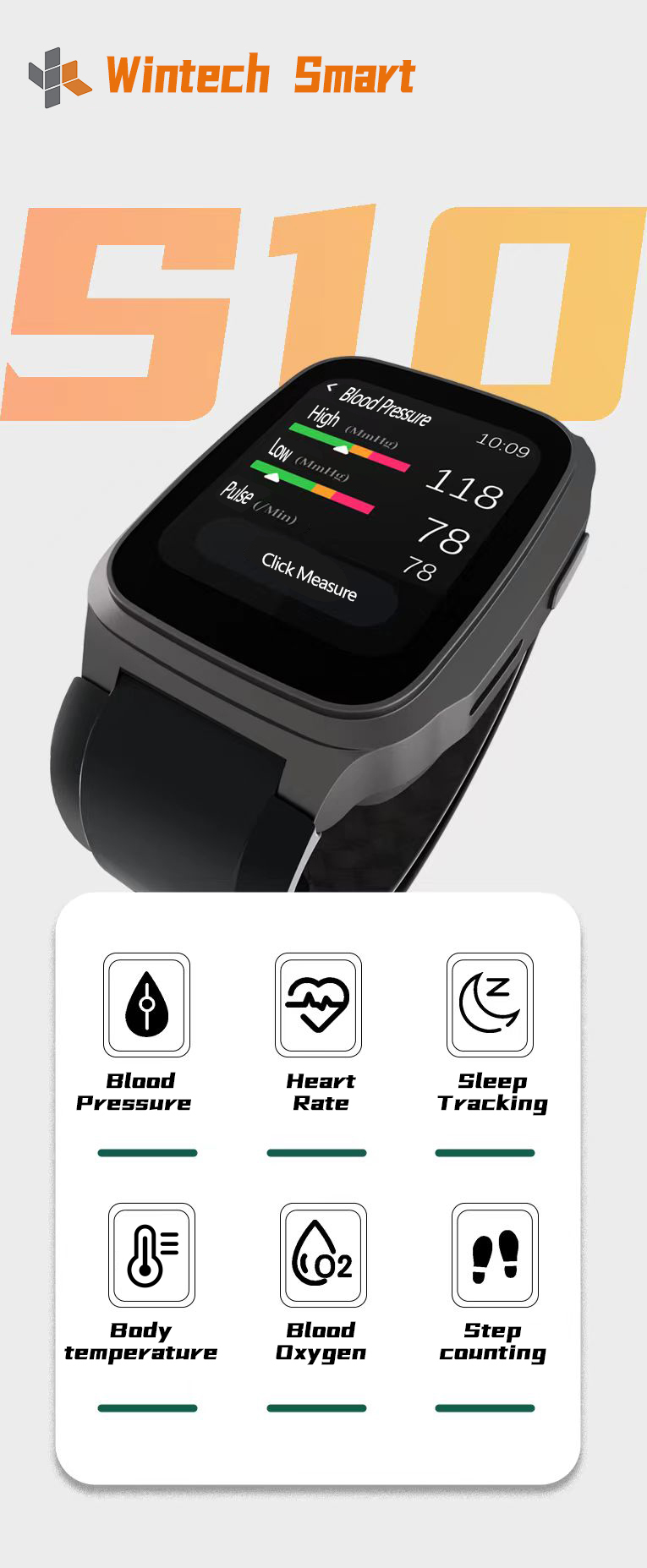

What health metrics does the S10 Pro track?

The S10 Pro tracks: blood pressure (air pump + cuff), heart rate (optical PPG), blood oxygen saturation (SpO2), body temperature, sleep quality (deep/light/REM), step counting, calorie expenditure, and multi-sport modes. All data syncs to the companion app with CSV export capability for clinical analysis.
