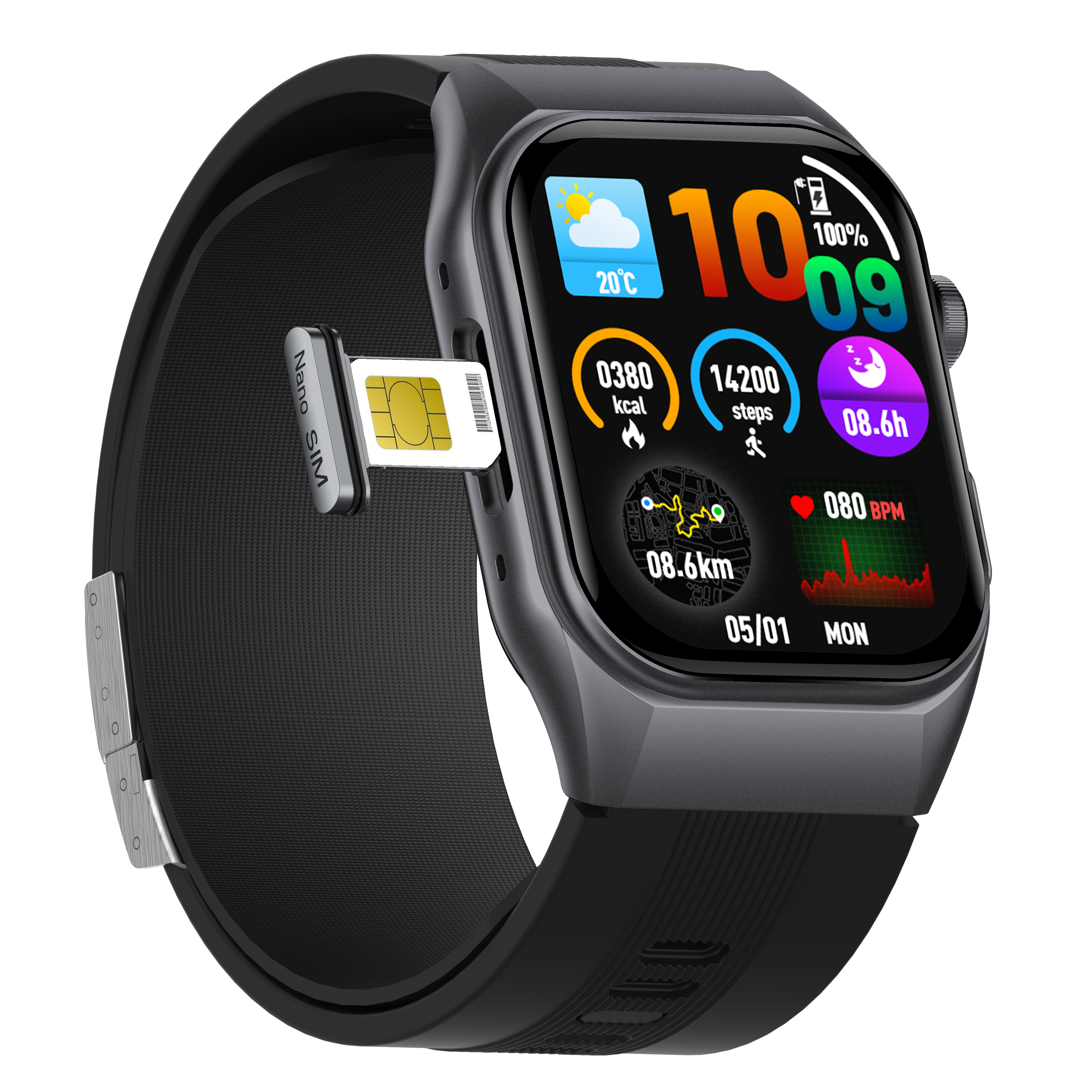

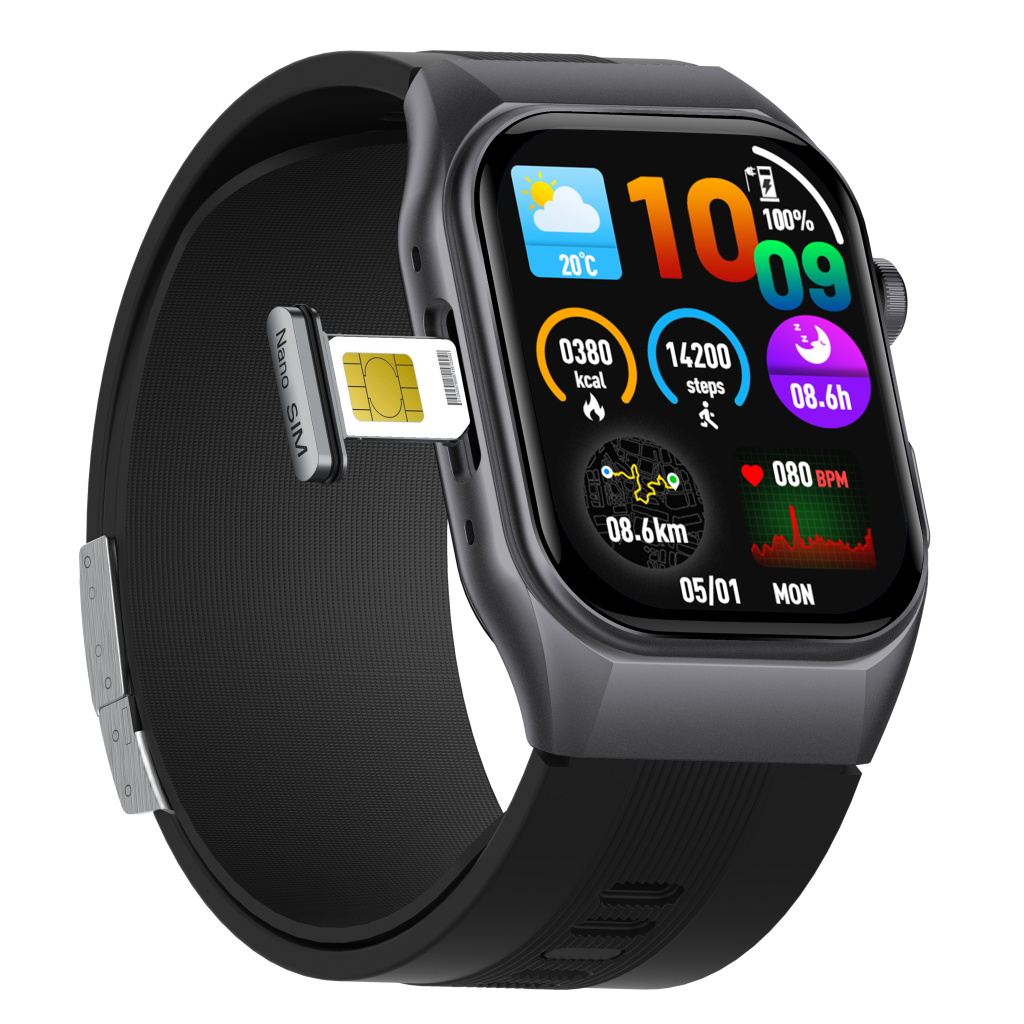

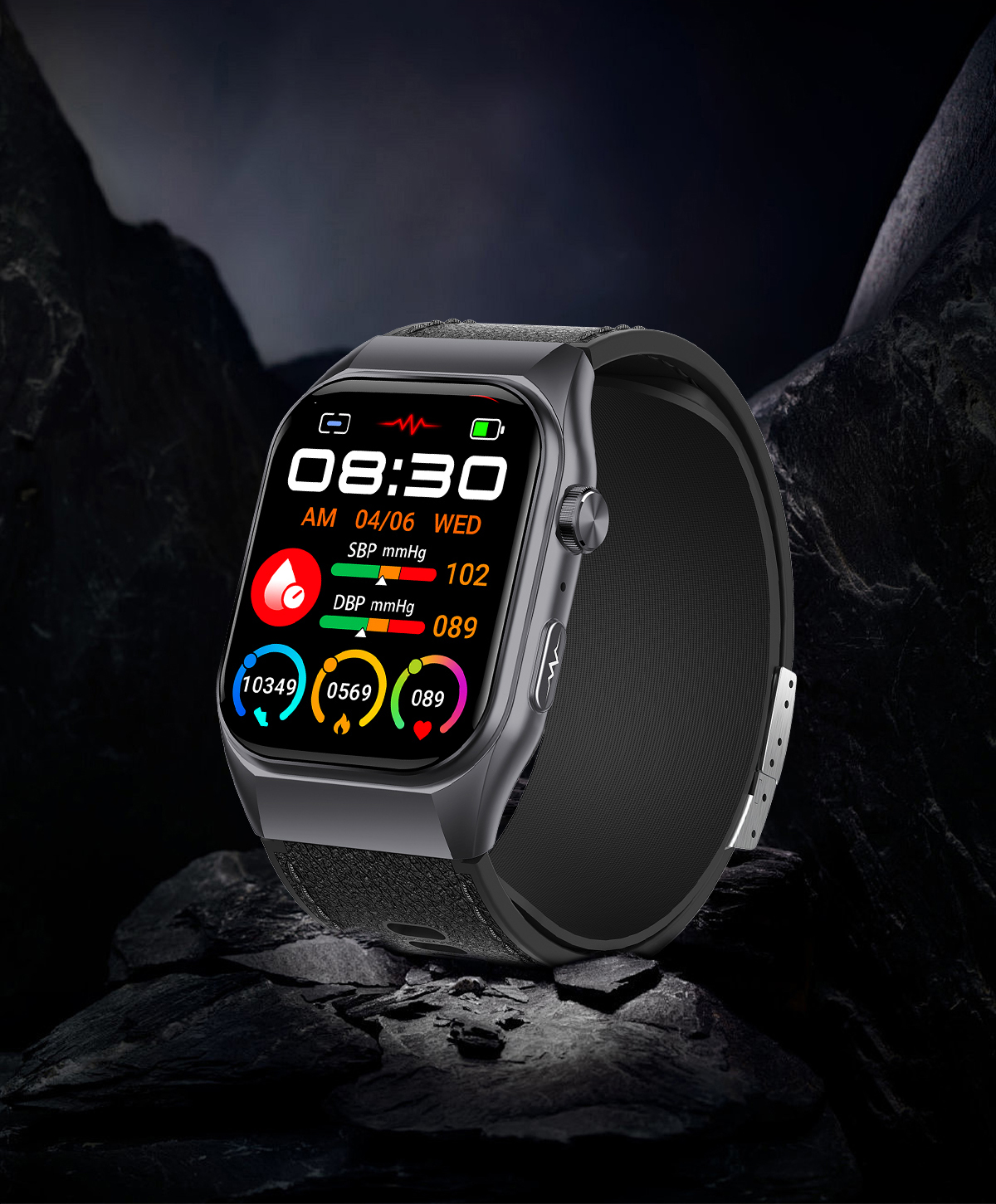

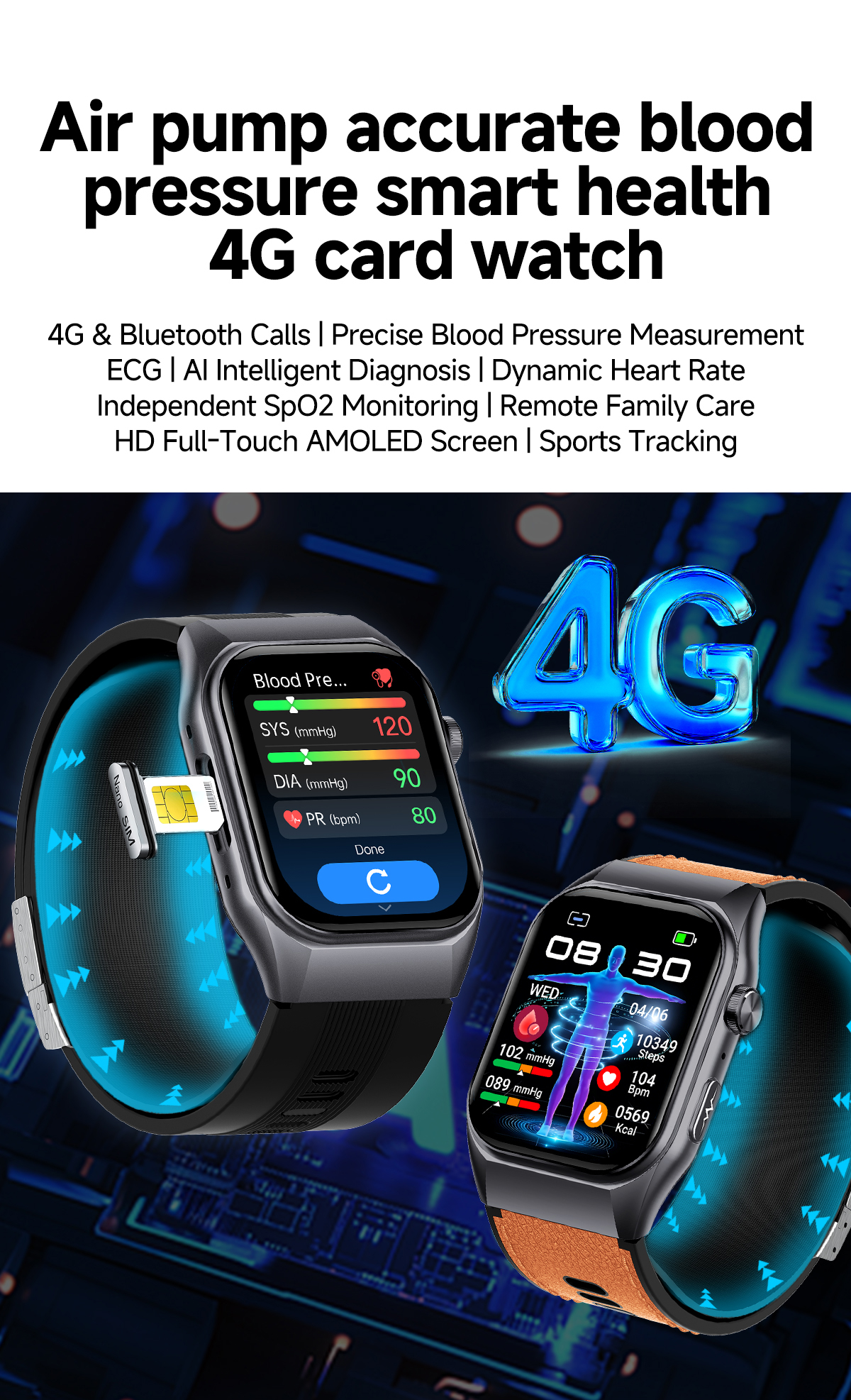

GS500 4G Air Pump Blood Pressure Smart Watch
Model GS500
- Imported Murata MZB3007 air pump with oscillometric BP measurement
- TI AFE4950 flagship sensor for ECG and health monitoring
- AI health analysis with one-tap micro-physical examination
- 2.06-inch AMOLED display with 410×502 resolution
- 5-10 days battery life, magnetic charging
Product Overview
The GS500 combines Murata’s precision air pump technology with TI’s AFE4950 sensor to deliver medical-grade oscillometric blood pressure measurement in a smartwatch form factor. With 4G HD calling, AI health analysis, ECG detection, EDA skin conductance, and 24-hour sleep monitoring, the GS500 is the ultimate health management wearable for B2B healthcare providers.
Health & Smart Features
Health Monitoring

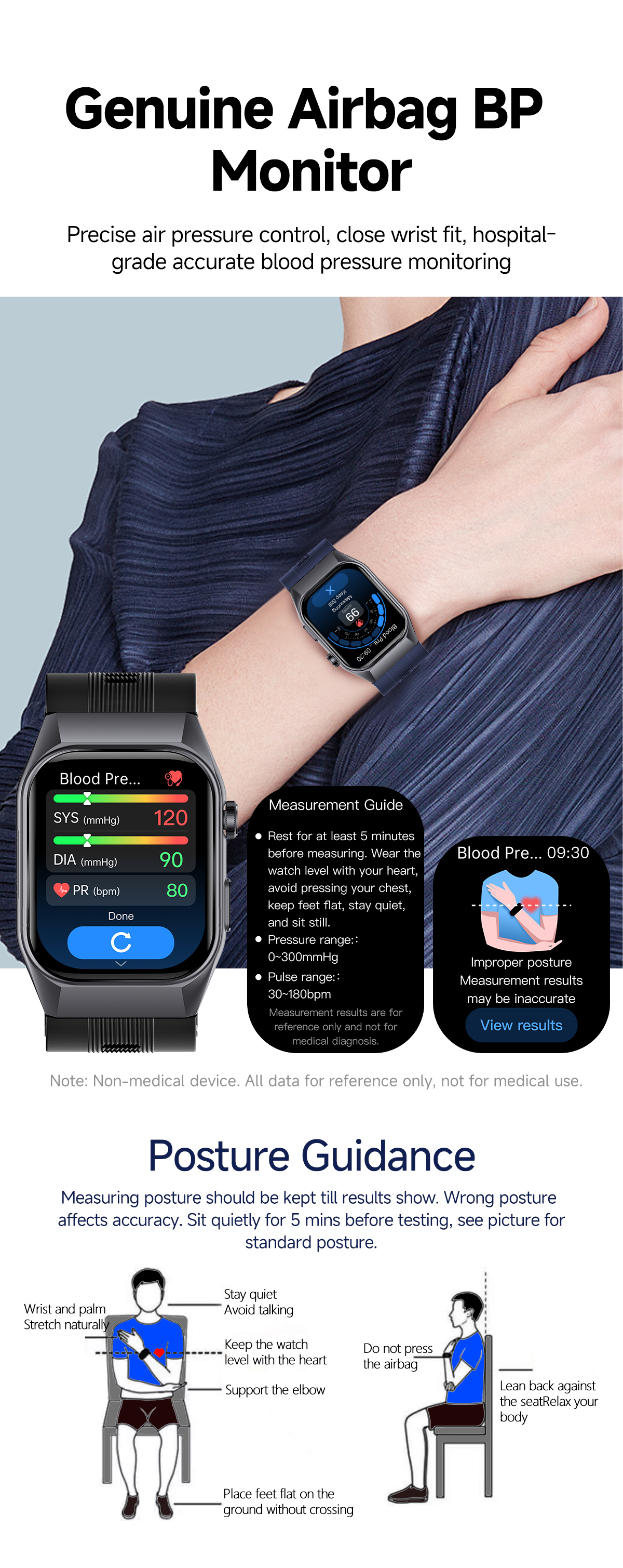

Oscillometric blood pressure detection
Health Monitoring

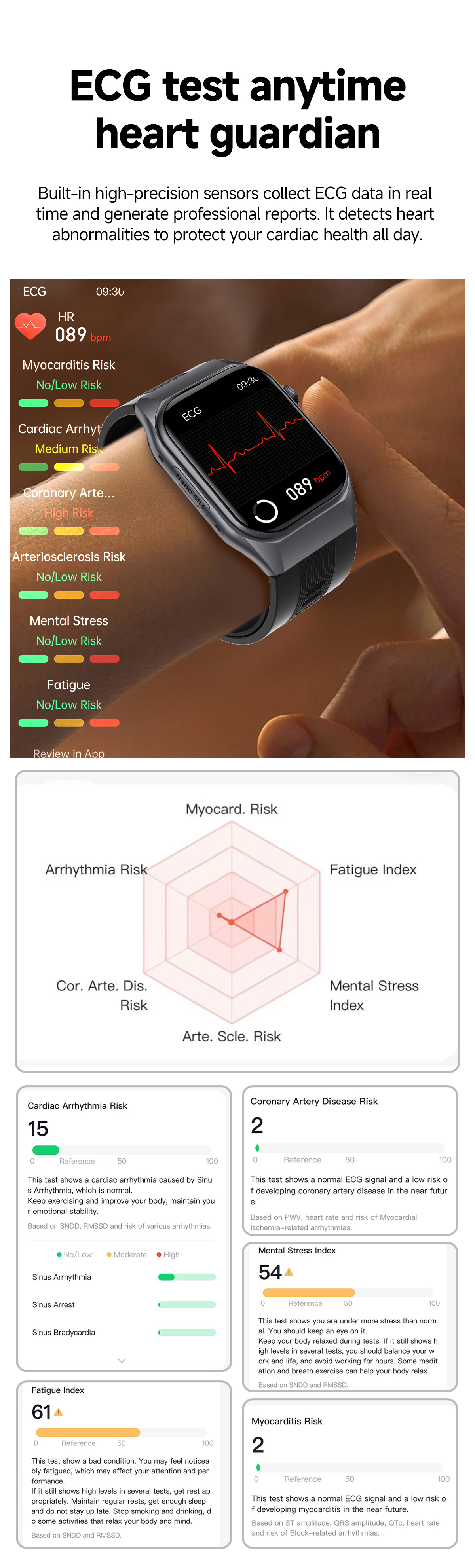

Electrocardiogram detection
Health Monitoring

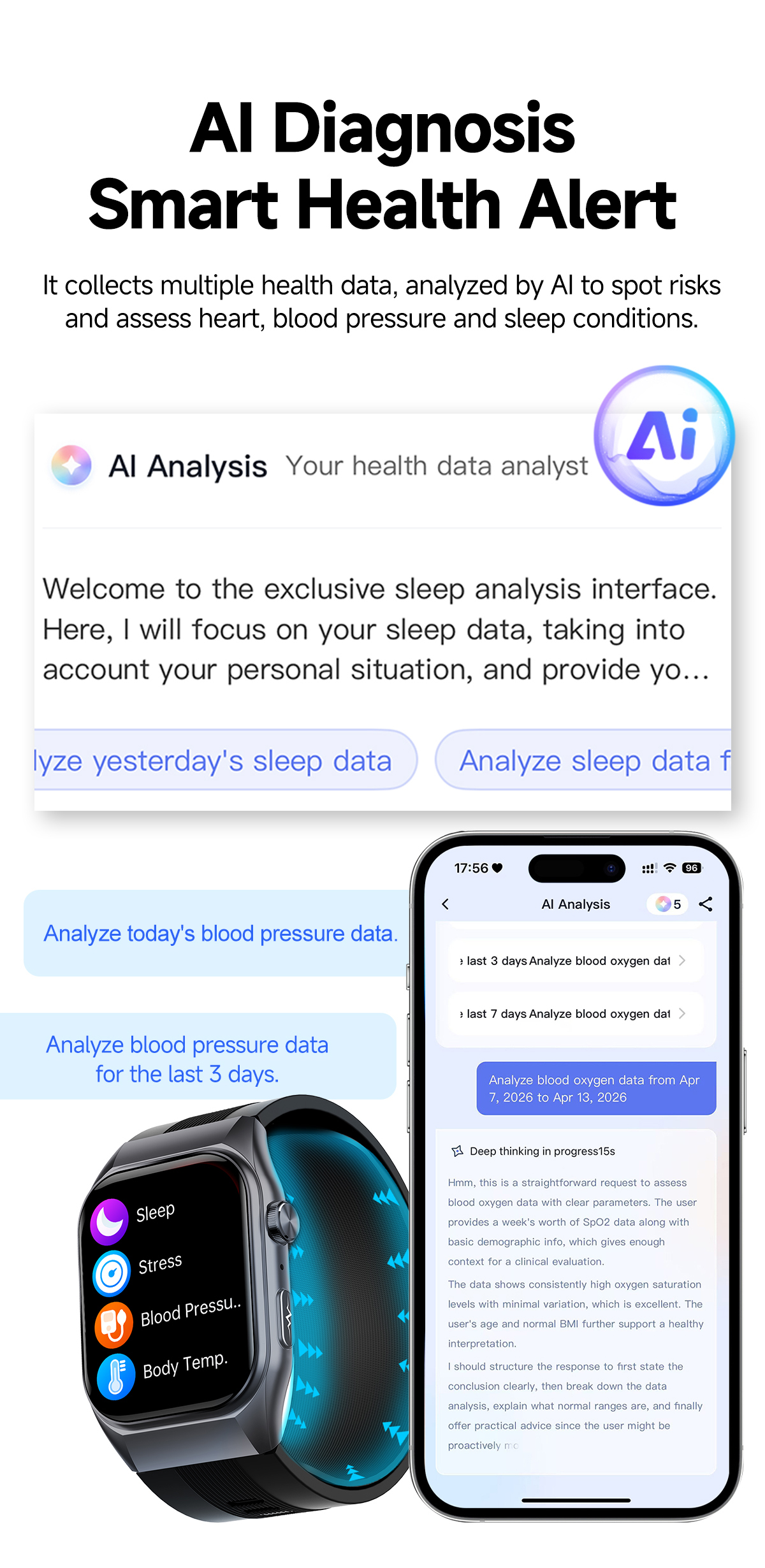

AI health analysis
Health Monitoring
heart health analysis
Health Monitoring
micro-physical examination function
Health Monitoring
emotion detection
Smart Features
4G HD call+Bluetooth call
Smart Features
Alipay
Smart Features
flashlight
Smart Features
step counting/calorie/distance

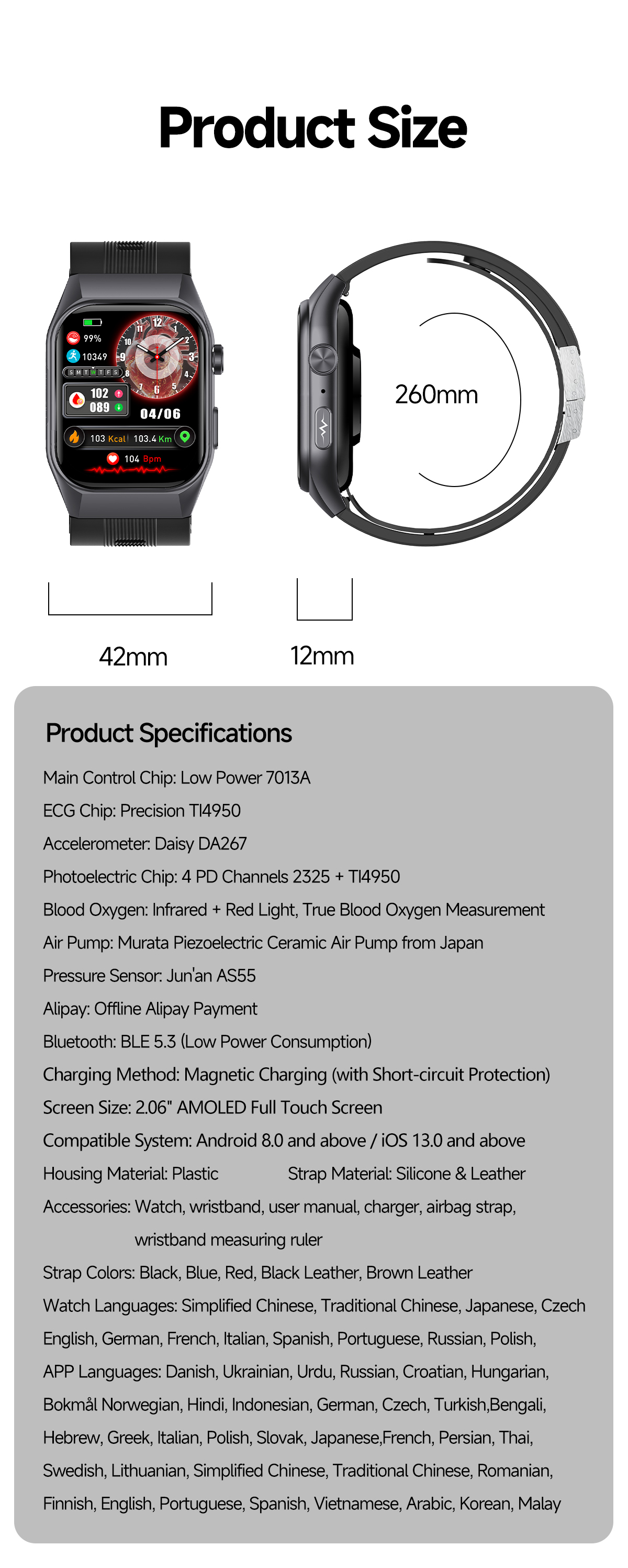

Technical Specifications
| MCU | JL7013A7 |
| 4G chip | SCS527E |
| ECG chip | TI AFE4950 |
| Blood oxygen chip | TI AFE4950 |
| Air pump model | Murata MZB3007 |
| Air pressure sensor | MZB3004 |
| Blood pressure type | Oscillographic air pump+air bag type |
| PPG chip | RA3220 + TI AFE4950 |
| Gravity sensor | DA267 |
| Operating system | Ucos system |
| BLuetooth | BLE 5.3 |
| Screen Type | AMOLED |
| Battery Capcaity | 390 mAh |
| Endurance Time | Use for 5–10 days, standby for 20 days |
| Bracelet size | 60*42*12MM (length and width) |
| Material | Shell: LDS+ stainless steel ECG key Bottom shell: PC+ABS sprayed with black high-gloss environmental protection paint+medical-grade high-performance conductive glass. Strap: environmentally friendly silicone/leather strap |
| Compatible system | Android 8 and above，iOS 13 and above |
Frequently Asked Questions
How accurate is the air pump blood pressure measurement?
The oscillometric air pump technology, combined with the Murata MZB3007 precision pump and MZB3004 pressure sensor, delivers clinically reliable blood pressure readings. We assist clients through CE / FCC / FDA / BIS certification processes to validate measurement accuracy for target markets.
Can the watch make calls independently?
Yes. The watch supports Nano SIM card 4G HD calls as well as Bluetooth calls when connected to a smartphone. It operates on FDD/TDD 4G networks.
How long does the battery last?

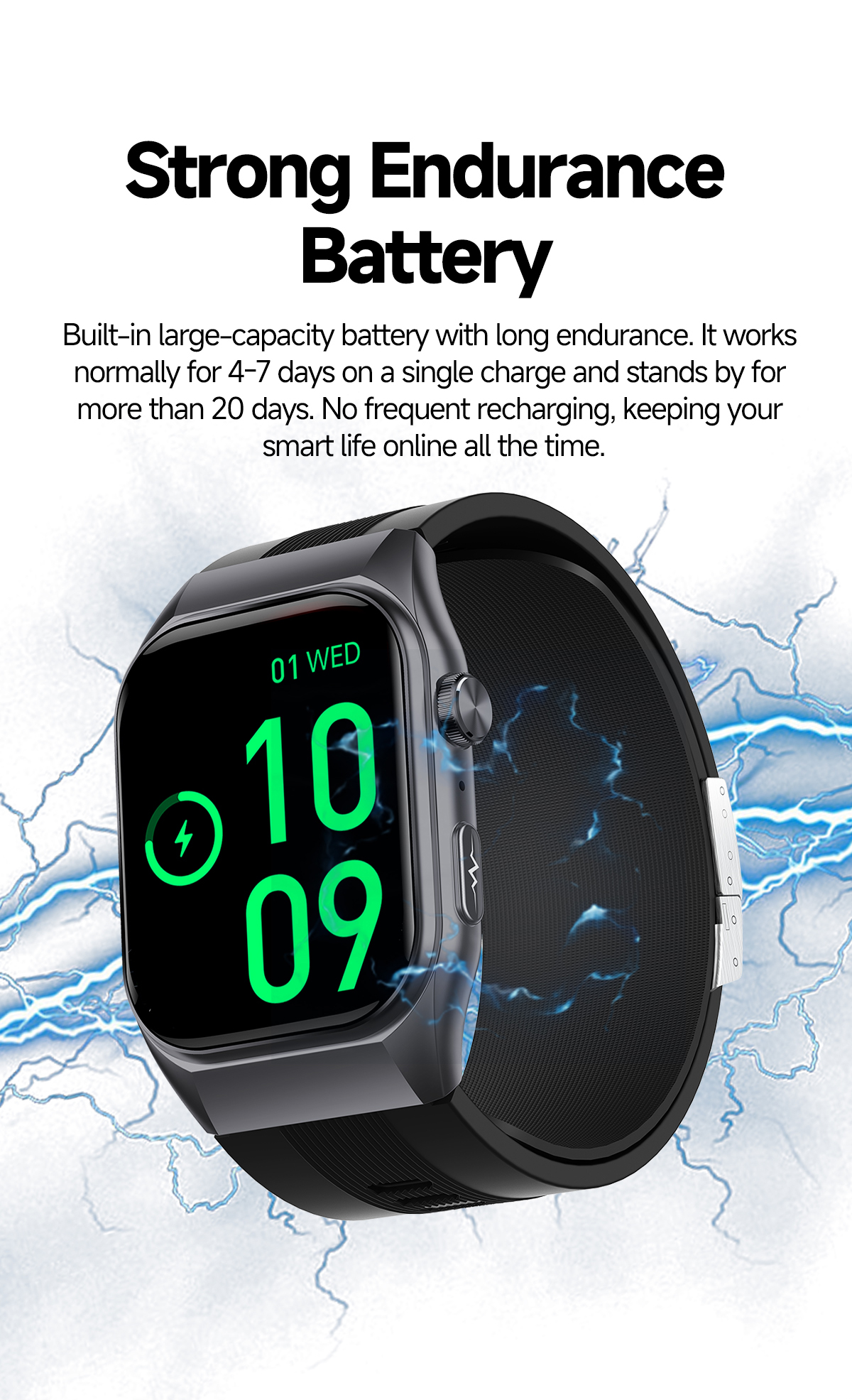

The high-density lithium polymer battery provides 5-10 days of typical use and up to 20 days on standby, depending on usage patterns and sensor activity.
Is the device suitable for elderly users?
Absolutely. The large AMOLED display, SOS emergency function, fall detection, and remote care features make it ideal for elderly health monitoring. Family members can track real-time health data via the companion app.
What certifications are available?
We assist clients through CE, FCC, RoHS, FDA, and BIS certification processes. Our manufacturing follows ISO 13485 quality management standards for medical devices.
Product Details
Frequently Asked Questions

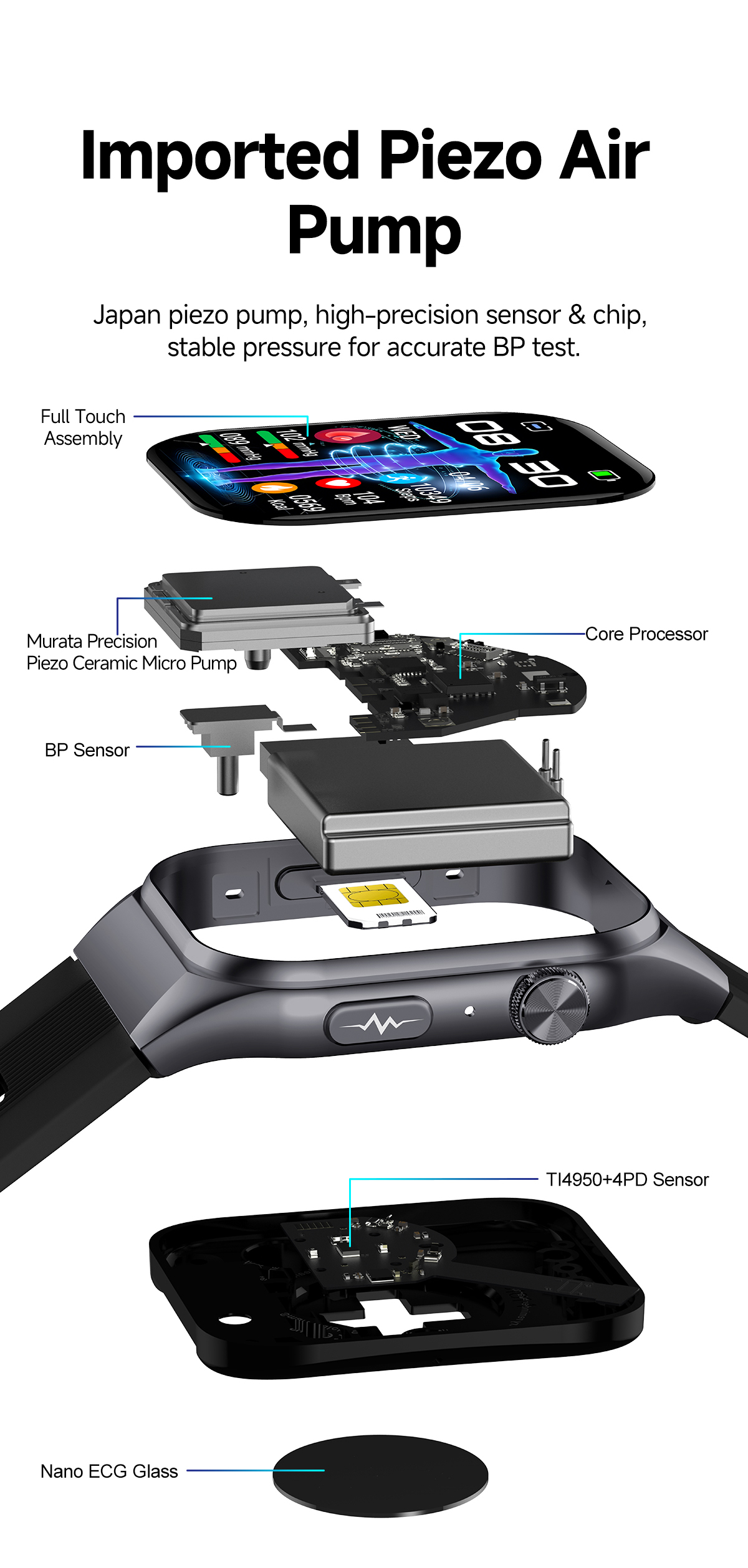

How does the GS500 air pump blood pressure technology differ from PPG-based watches?

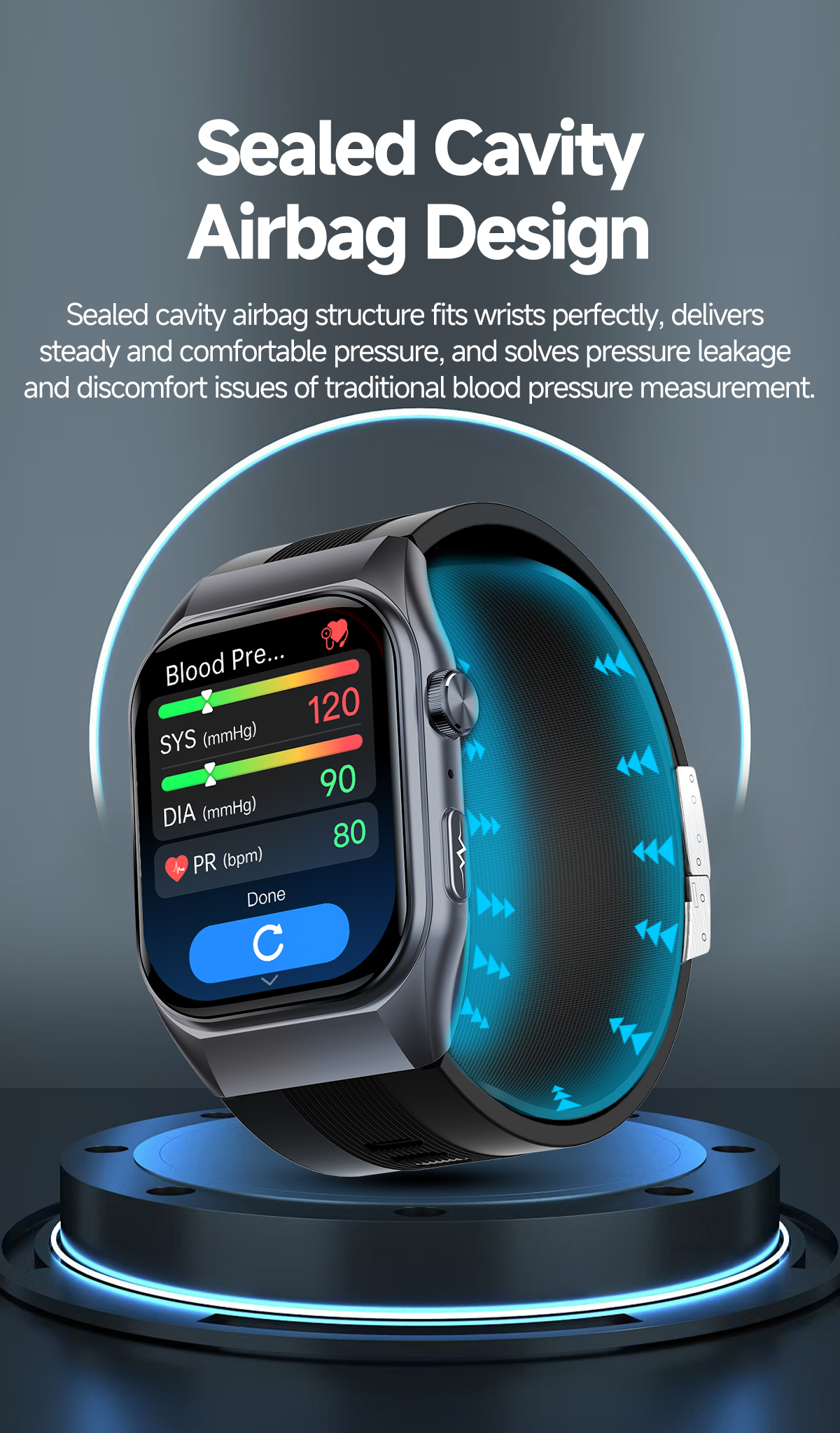

The GS500 uses oscillometric air pump technology with the Murata MZB3007 precision piezoelectric ceramic pump and MZB3004 pressure sensor, which inflates an airbag cuff directly on the wrist. This method captures blood pressure trends through actual cuff-based measurement rather than optical estimation, providing more consistent and reliable readings compared to PPG-only approaches.

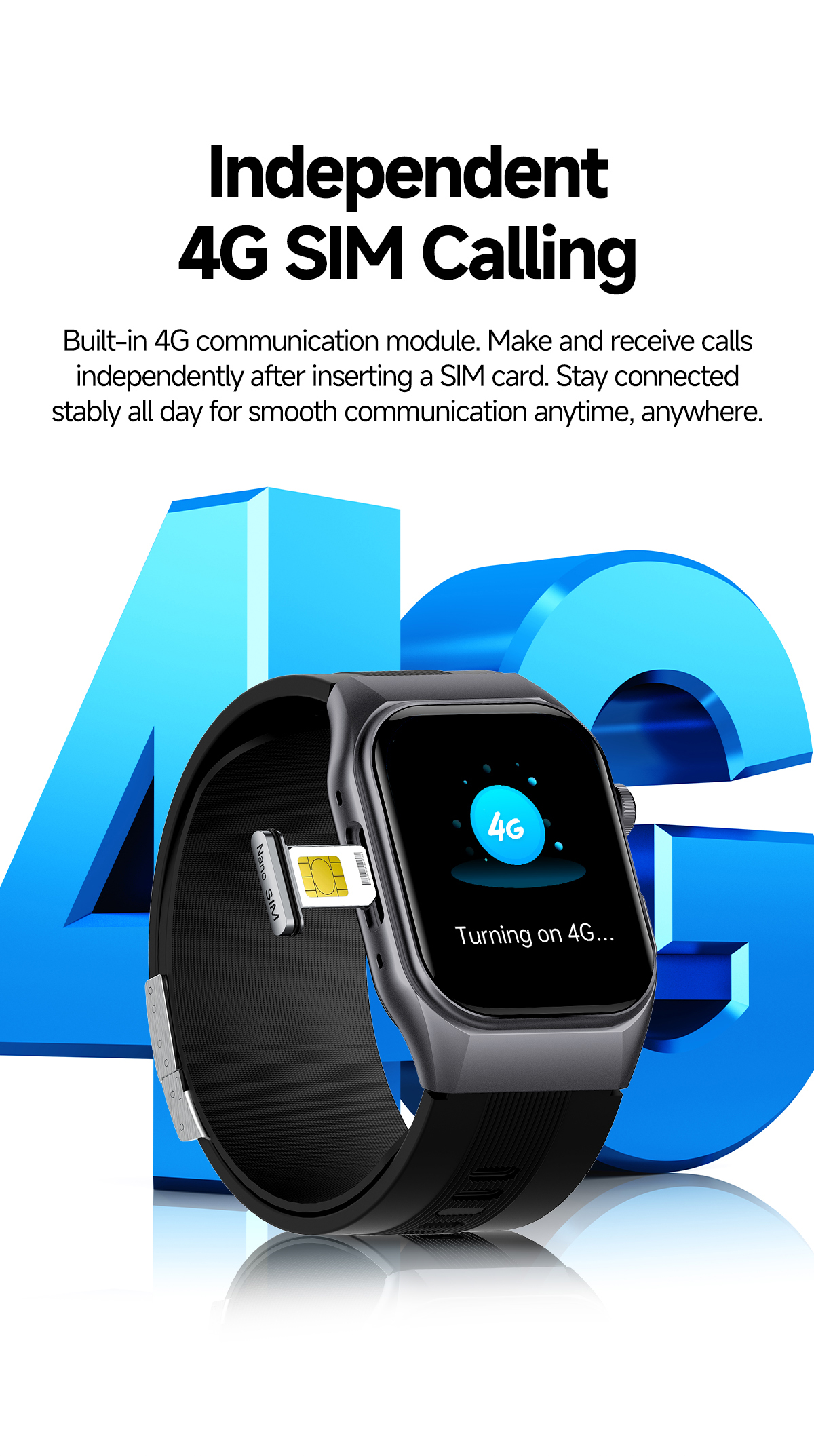

Can the GS500 operate independently with its own cellular connection?
Yes. The GS500 supports Nano SIM card 4G LTE for standalone HD voice calls, SMS, and data connectivity without requiring a paired smartphone. It also supports Bluetooth 5.3 calls when connected. This standalone capability is ideal for elderly care, remote worker safety, and situations where carrying a phone is impractical.
What health monitoring features does the GS500 offer beyond blood pressure?

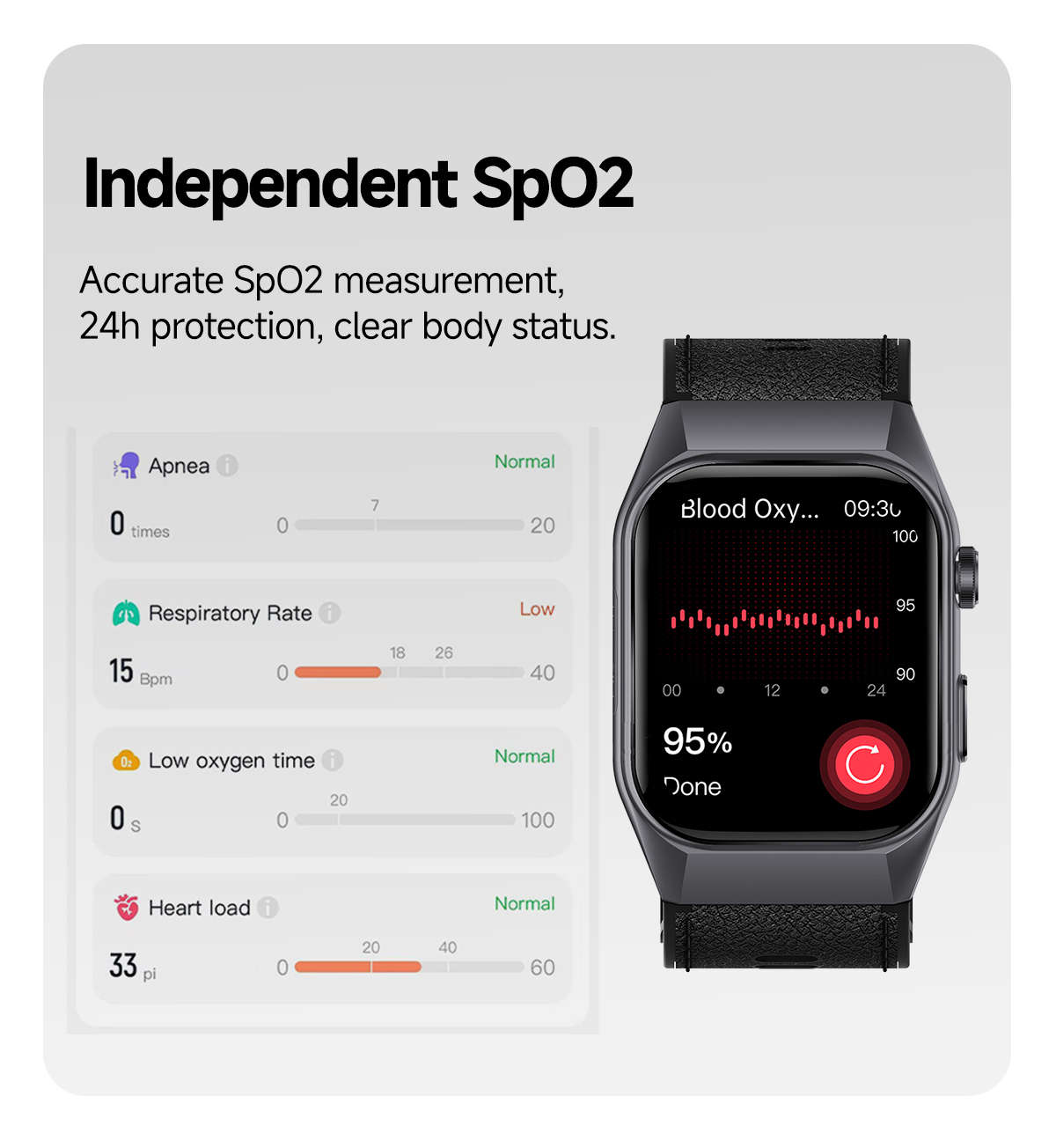

In addition to oscillometric blood pressure trend monitoring, the GS500 includes ECG detection via the TI AFE4950 sensor, EDA skin conductance for stress assessment, heart rate tracking, blood oxygen (SpO2) monitoring, body temperature, 24-hour sleep analysis, and AI-powered health analysis with one-tap micro-physical examination reports. Fall detection and SOS emergency calling are also built in.
What OEM customization options are available for the GS500?
Full OEM/ODM customization is available: custom branding on the watch body and packaging, private-label companion app development, custom firmware features, API integration with your remote monitoring platform, and we support customers through the certification process for their target markets. Standard MOQ is 500 units for OEM orders and 1,000+ for full ODM.

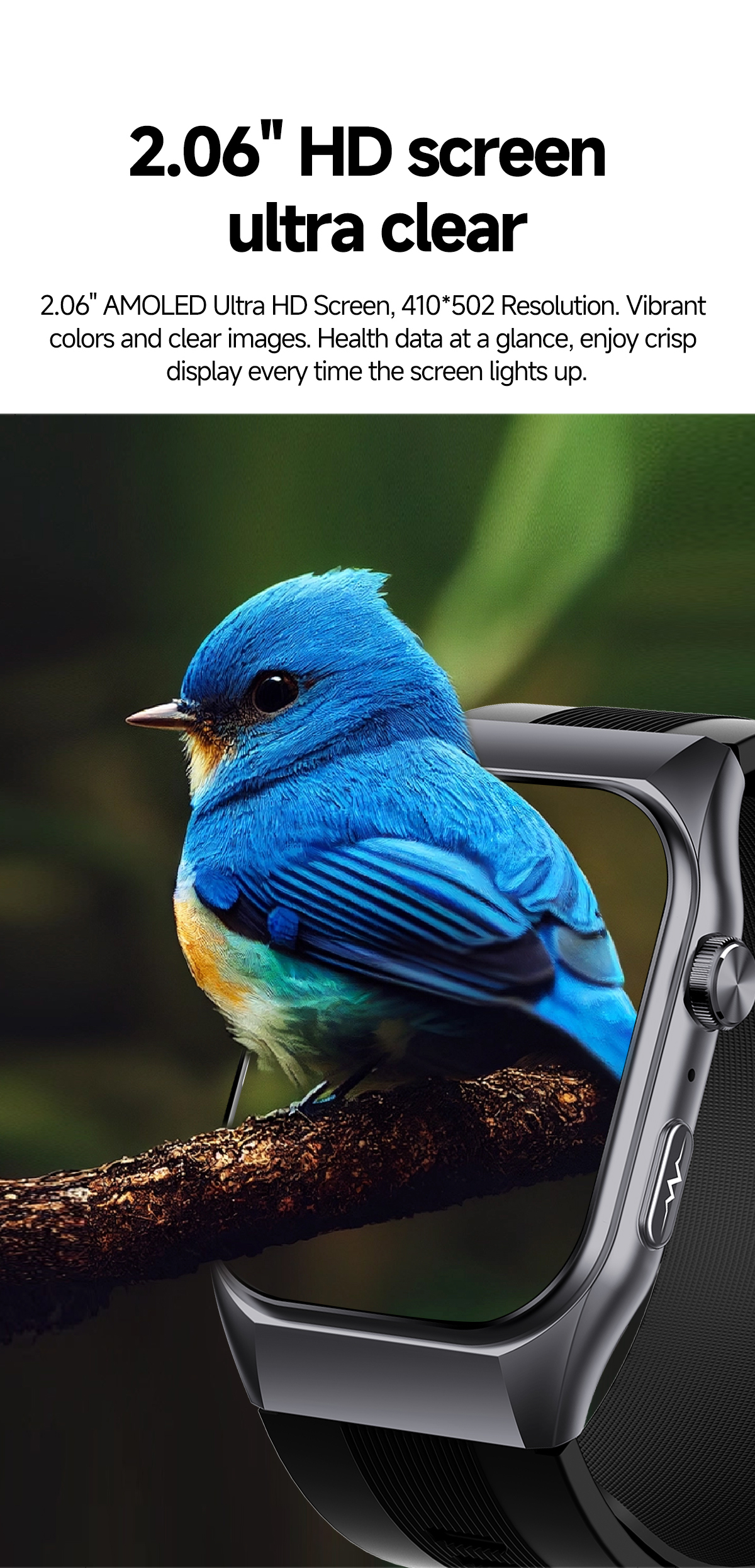

What is the display specification and battery performance?

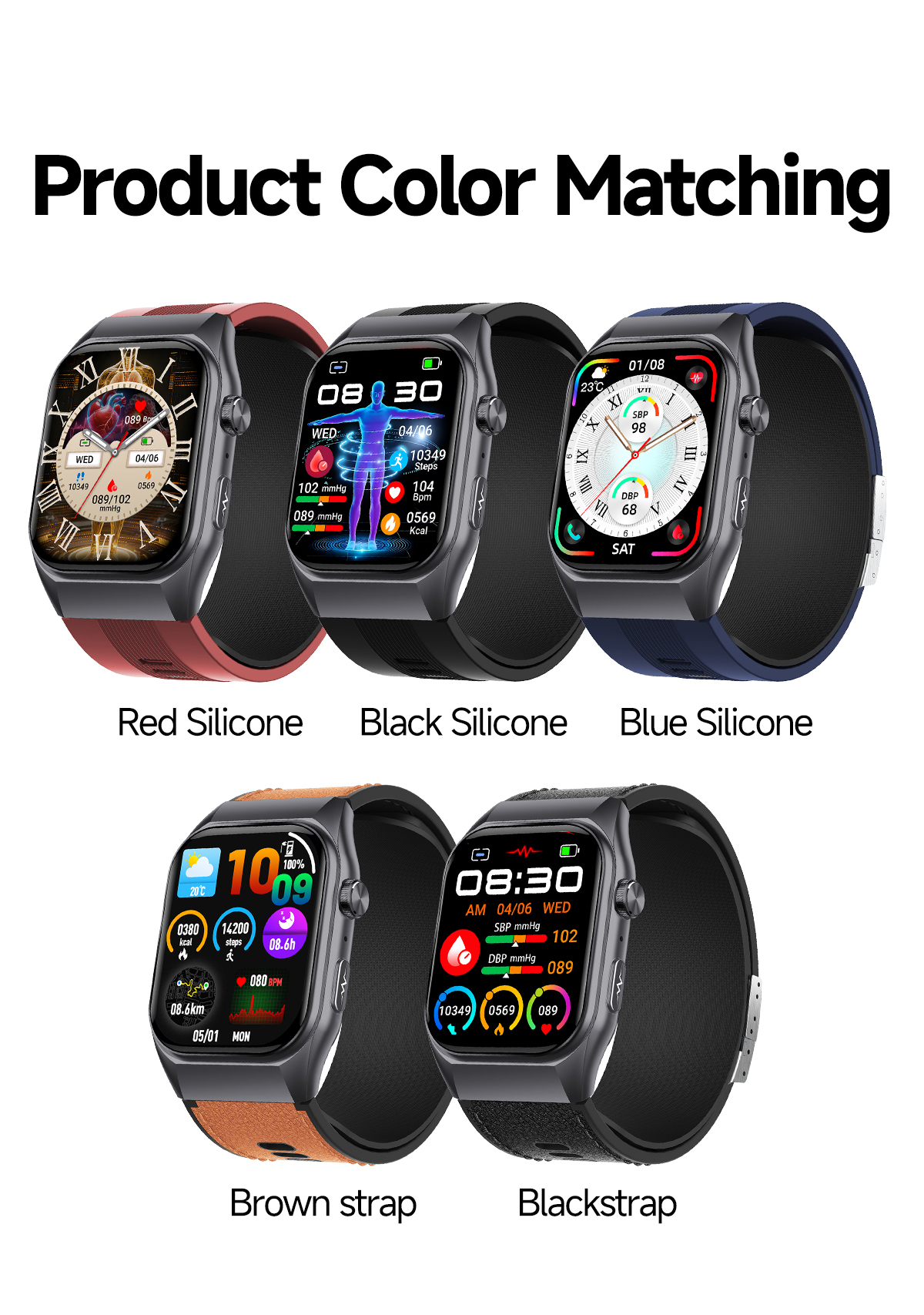

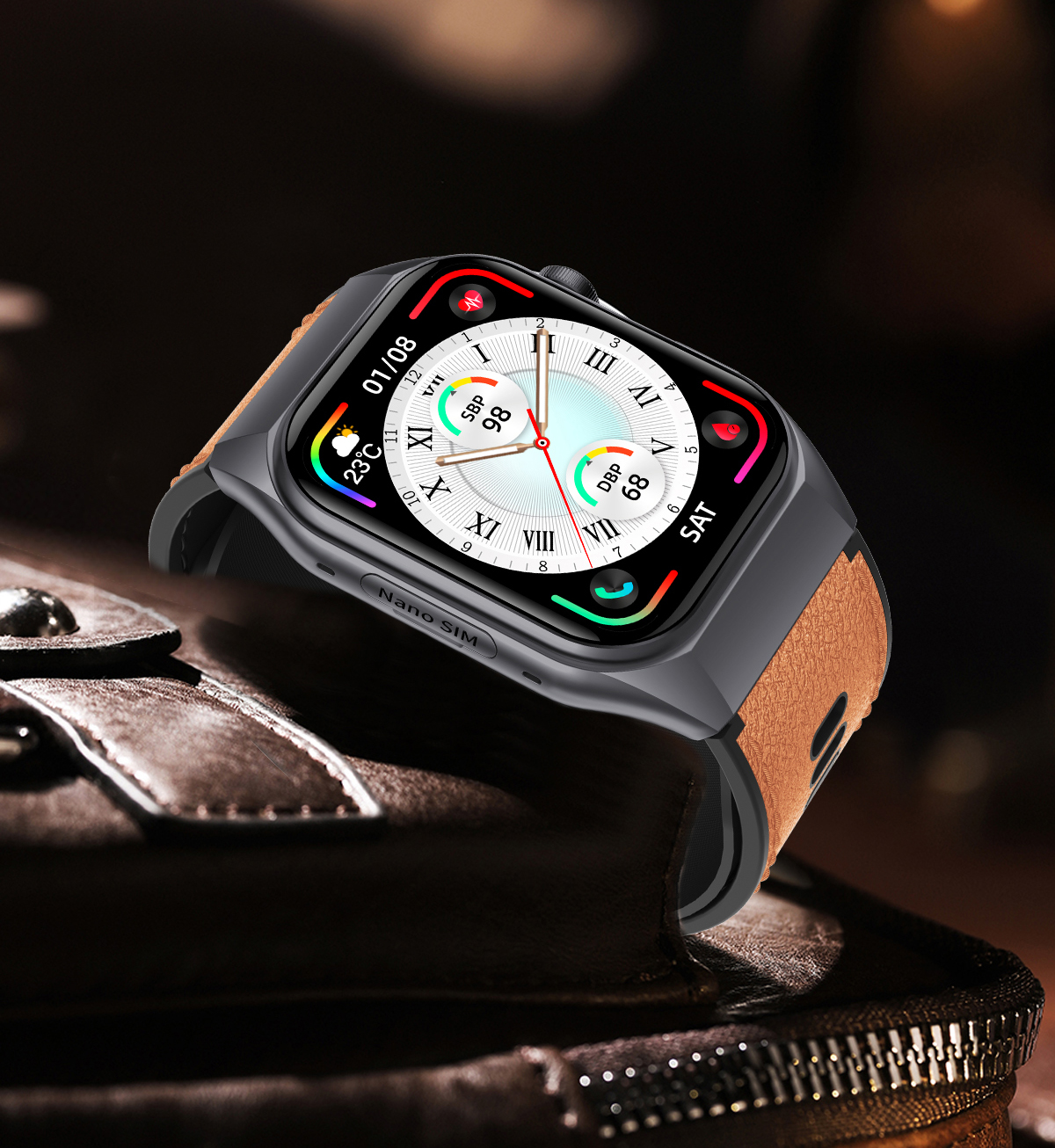

The GS500 features a 2.06-inch AMOLED display with 410x502 resolution for clear readability of health data and call interfaces. The 390mAh battery provides 5 to 10 days of typical use and up to 20 days standby, with magnetic charging. Dimensions are 60x42x12mm with environmental silicone or leather strap options.
