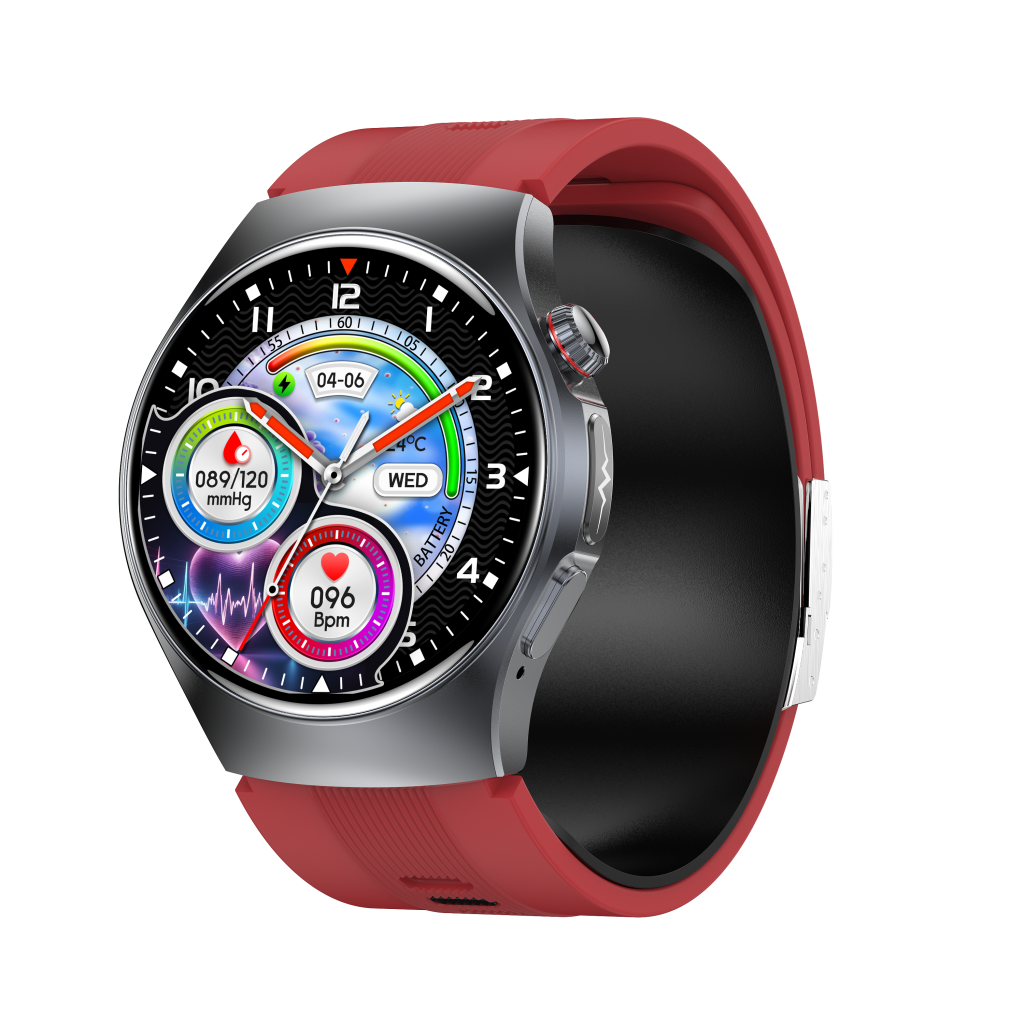

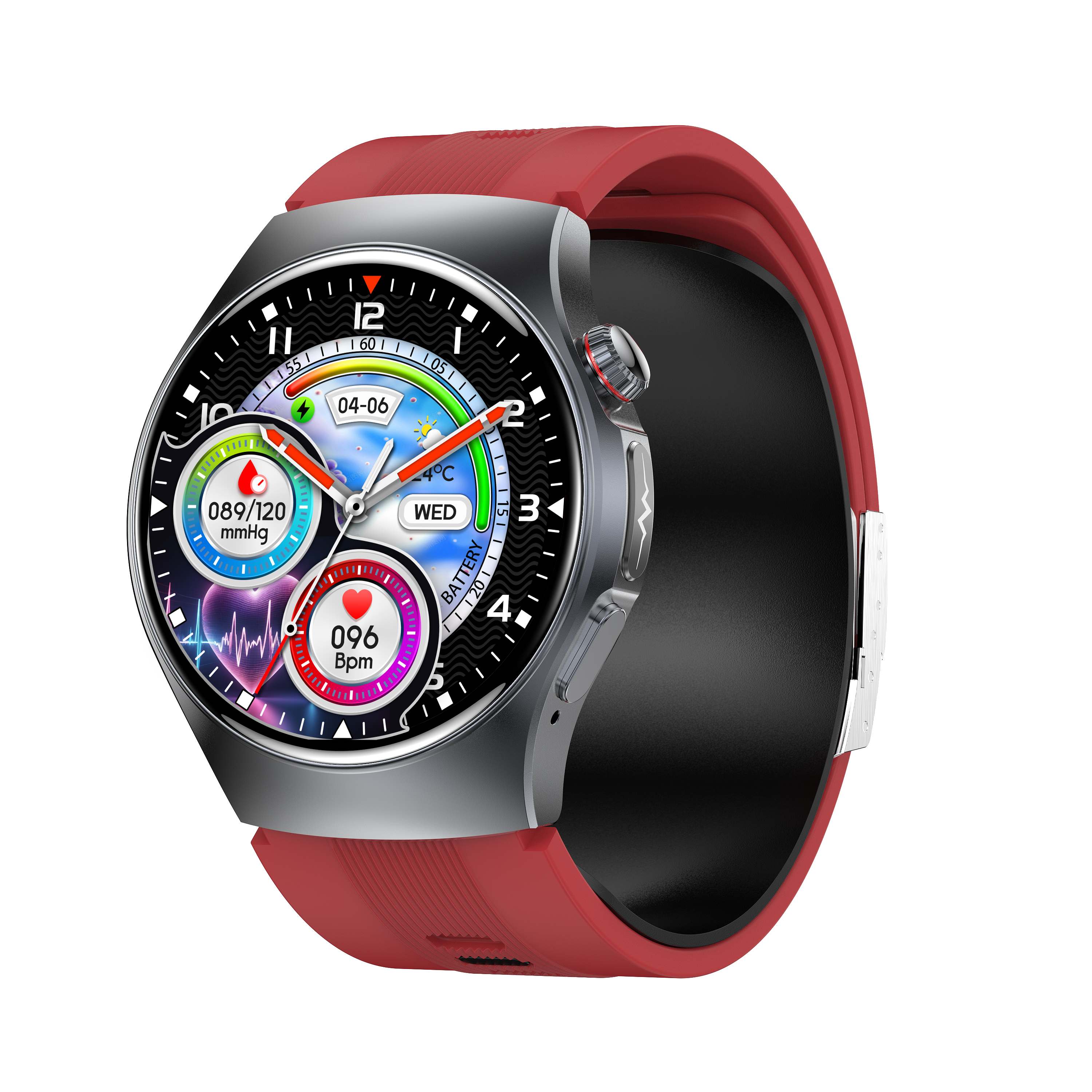

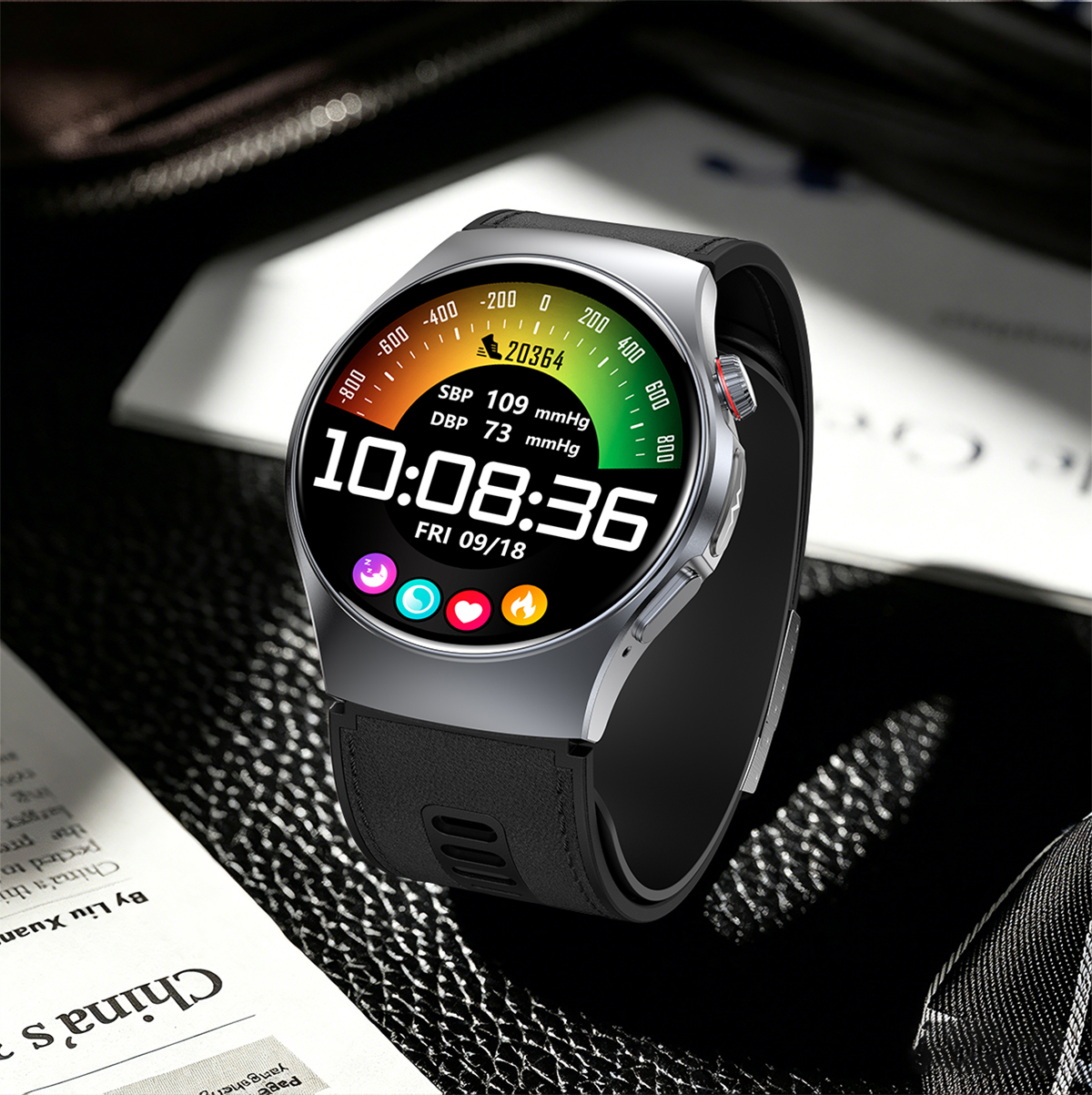

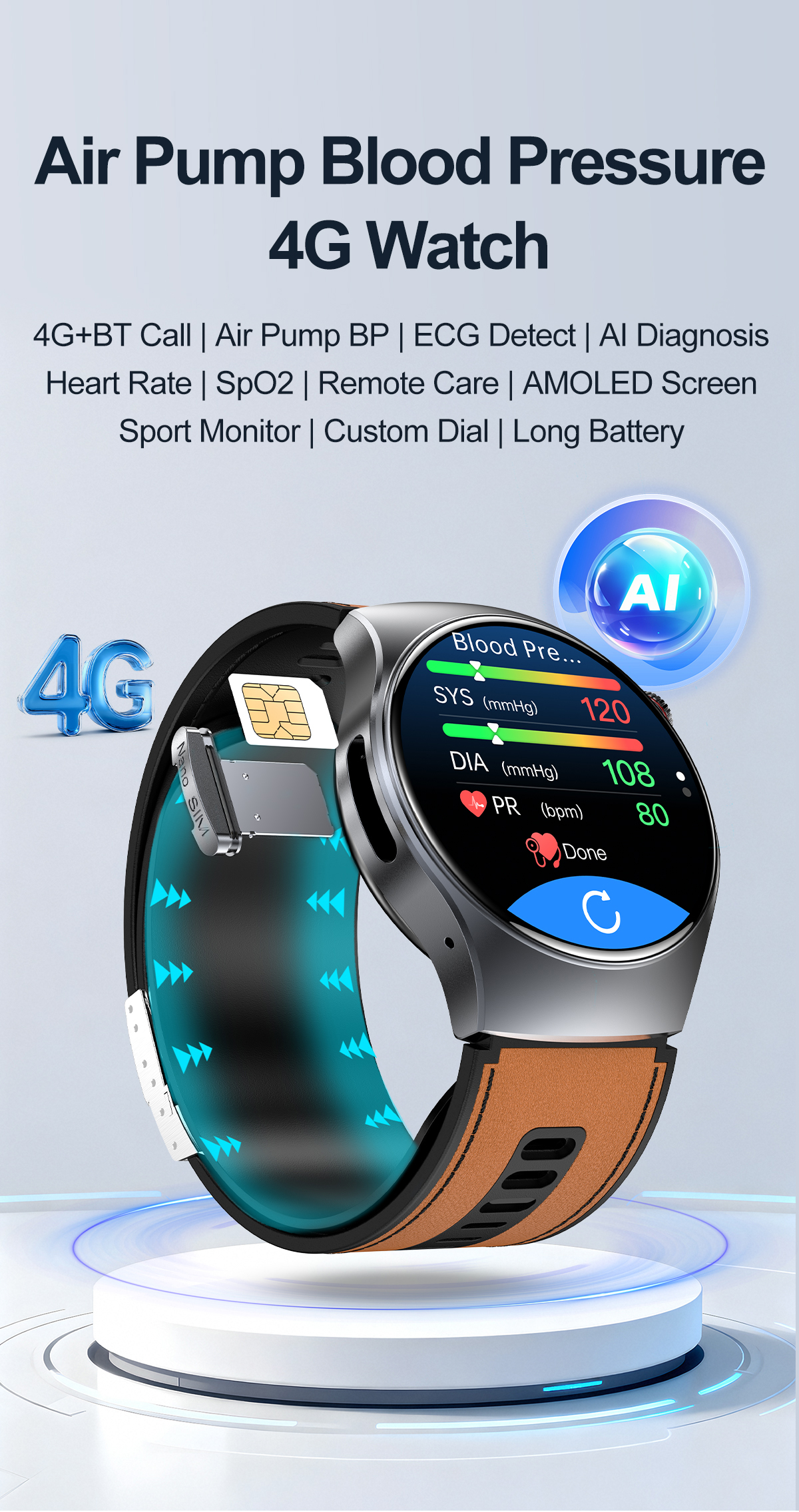

GS206 4G Air Pump Blood Pressure Smart Health Watch
Model GS206
- Murata MZB3007 air pump + TI AFE4950 sensor combination

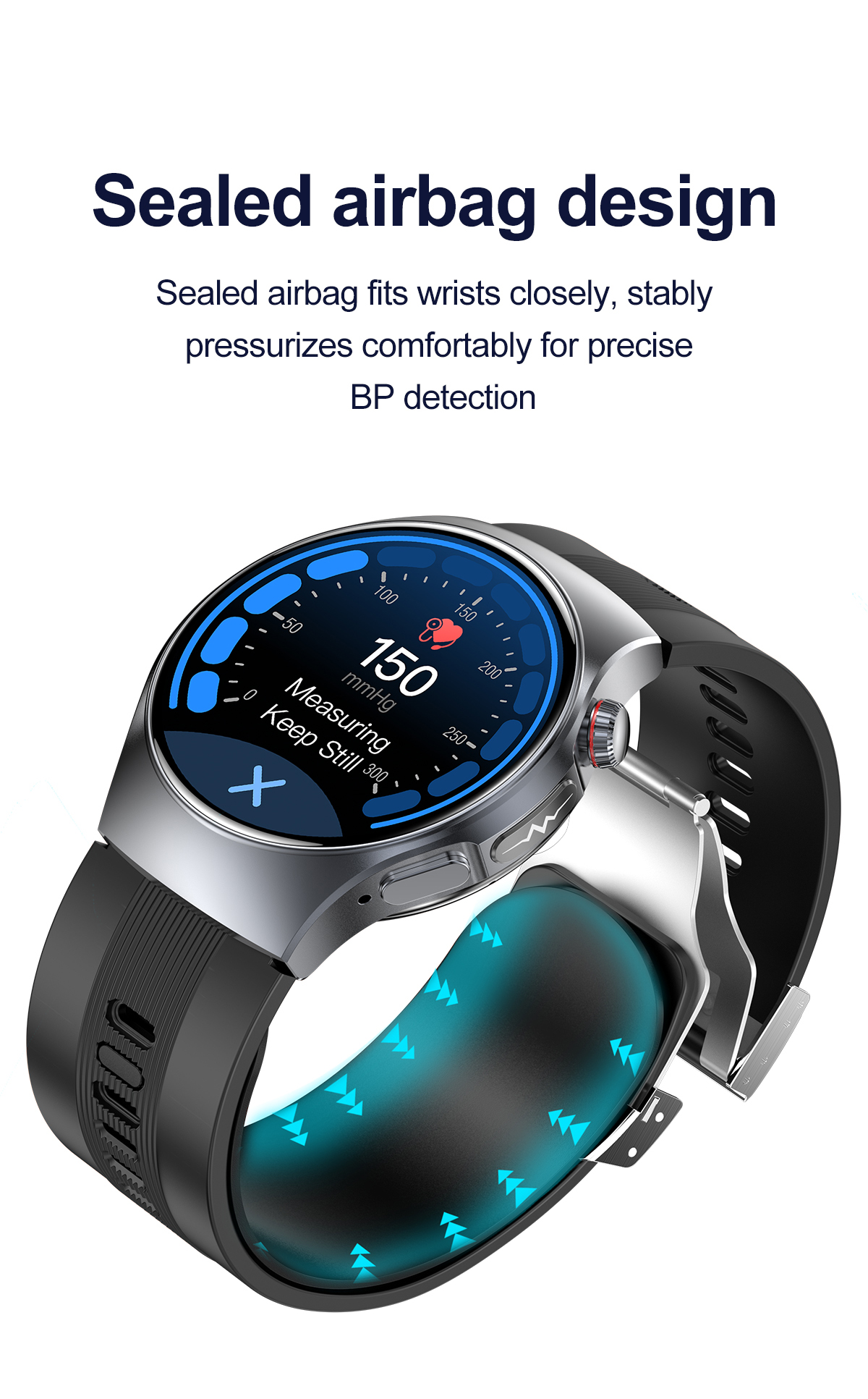

- Oscillometric air bag blood pressure measurement

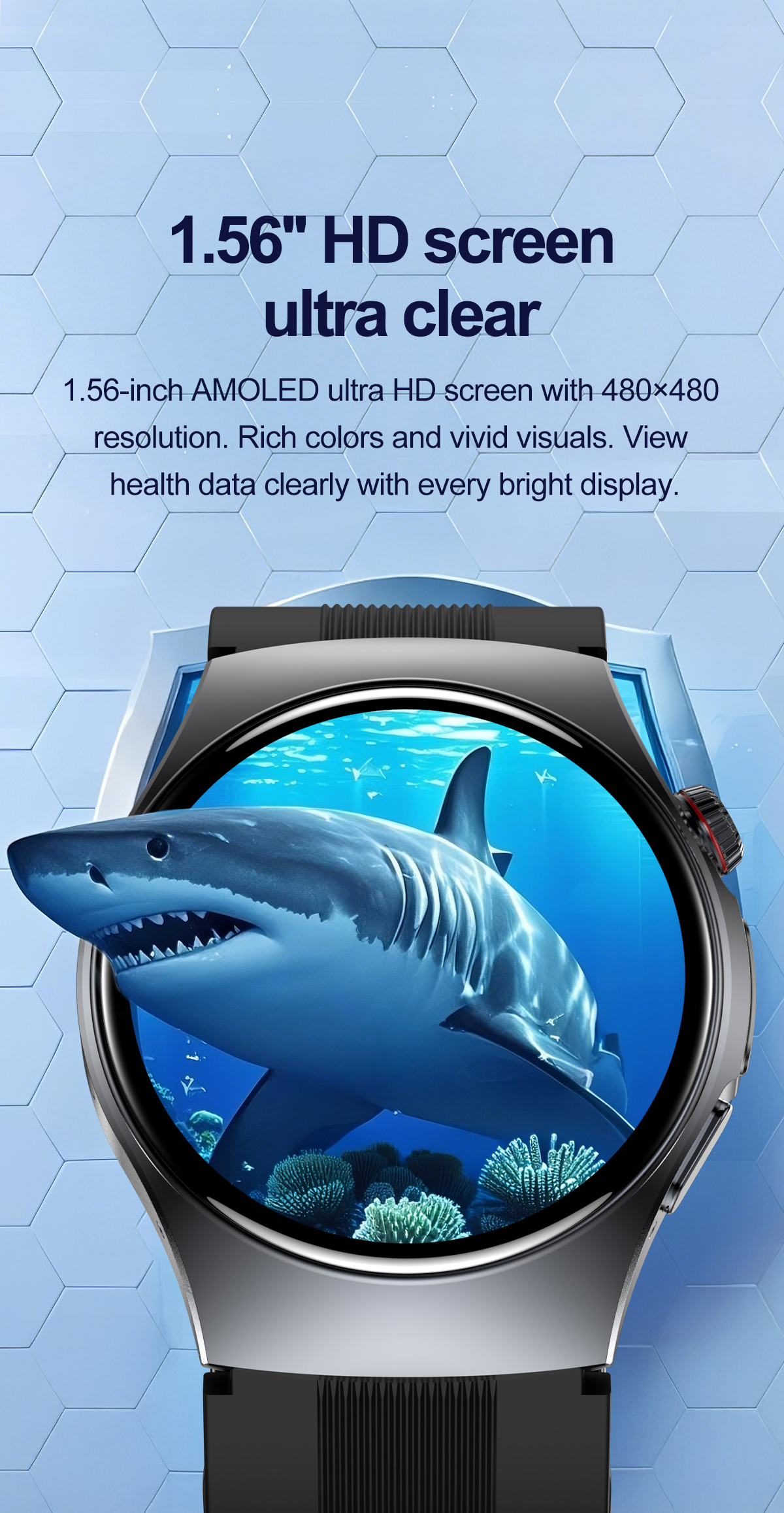

- 1.56-inch AMOLED display, compact 56×50×15mm design
- 3-7 days typical use, 390mAh battery
- 4G SIM card calling + Bluetooth call support
Product Overview
The GS206 is a compact yet powerful air pump blood pressure smartwatch featuring Murata’s precision MZB3007 pump and TI’s AFE4950 sensor. With oscillometric BP measurement, ECG monitoring, SpO2 tracking, and 4G calling in a 1.56-inch AMOLED form factor, it offers an ideal balance of functionality and wearability for healthcare distributors.
Health & Smart Features
Health Monitoring
Oscillometric blood pressure detection
Health Monitoring

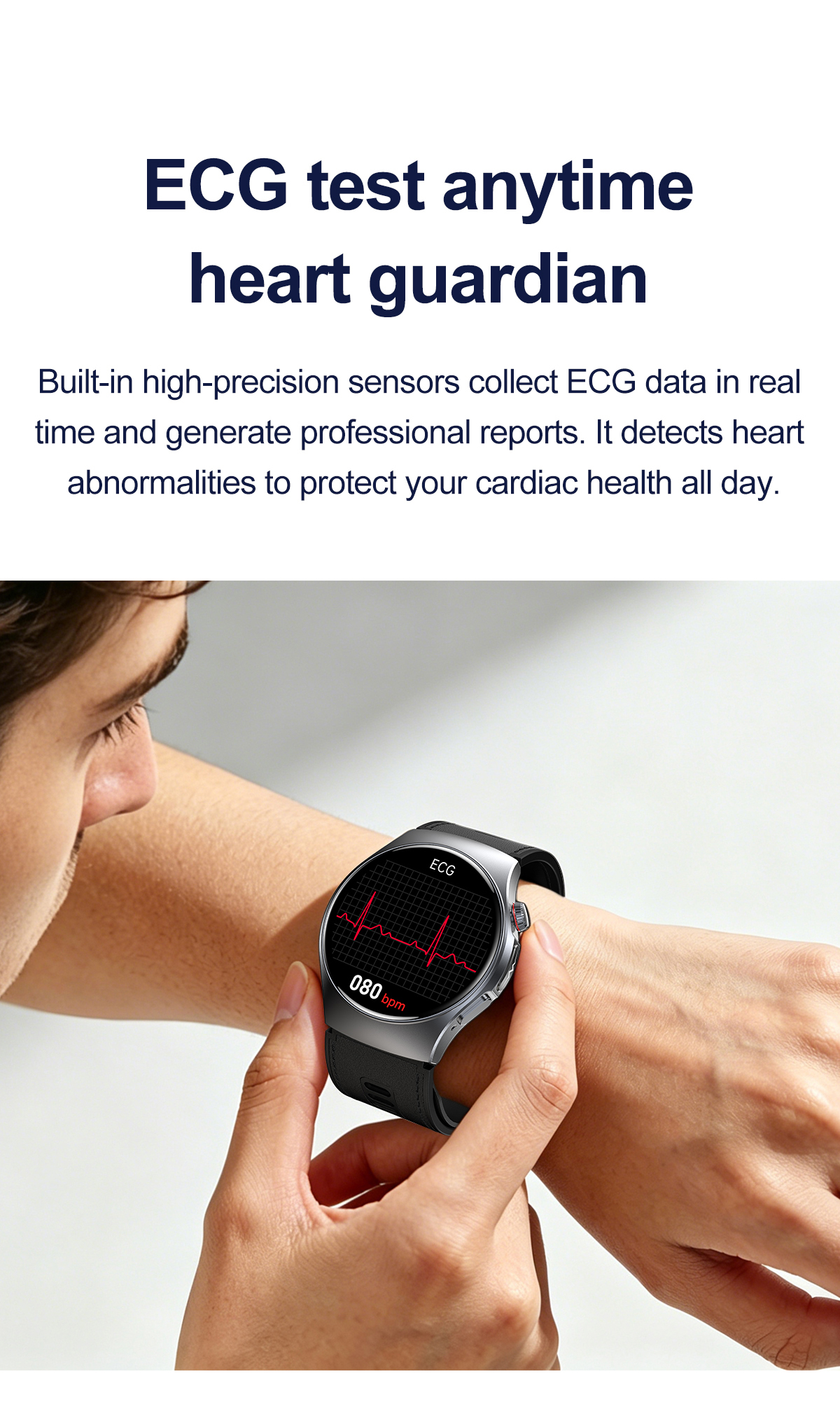

Electrocardiogram detection
Health Monitoring
AI health analysis
Health Monitoring

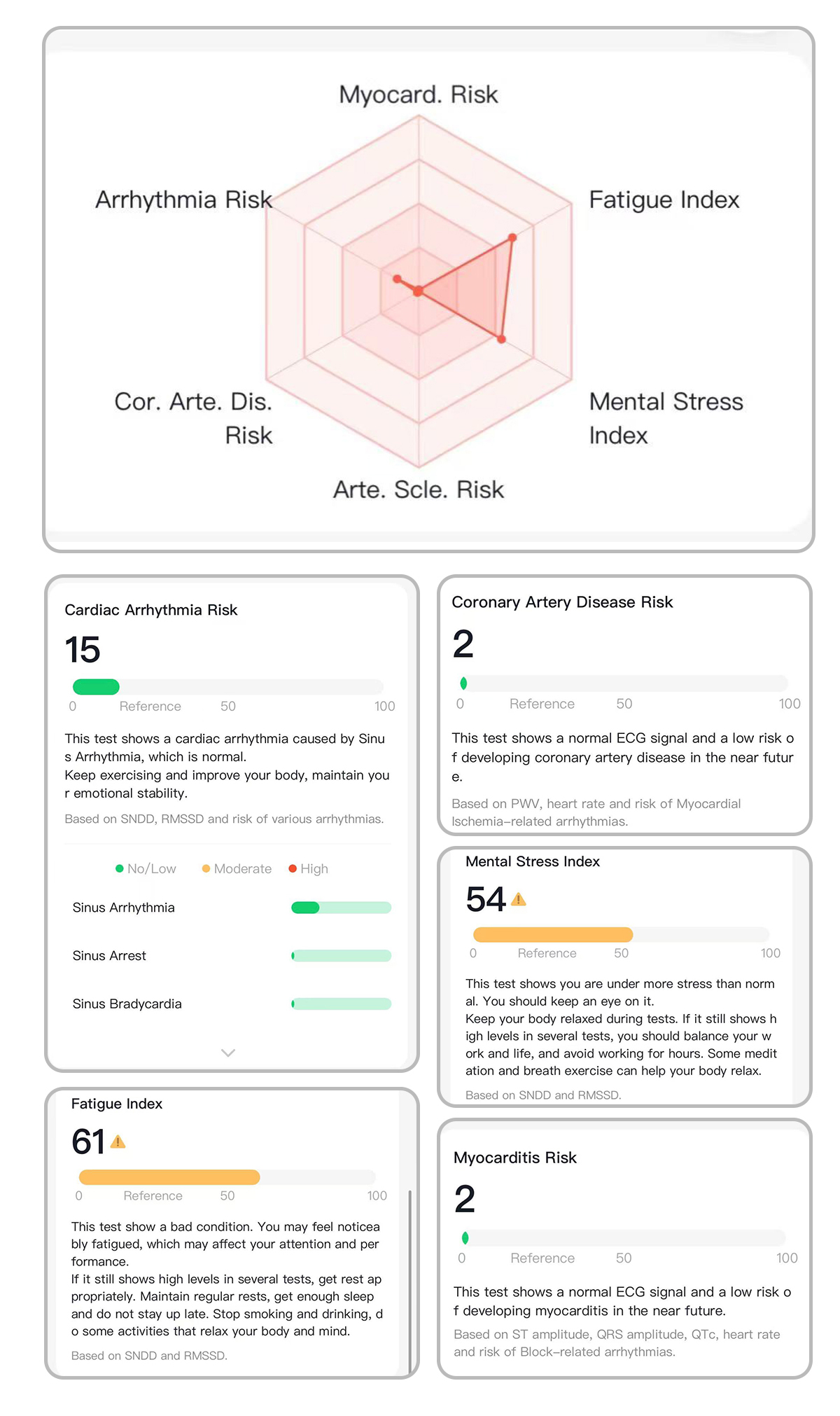

heart health analysis
Health Monitoring
micro-physical examination function
Health Monitoring
emotion detection

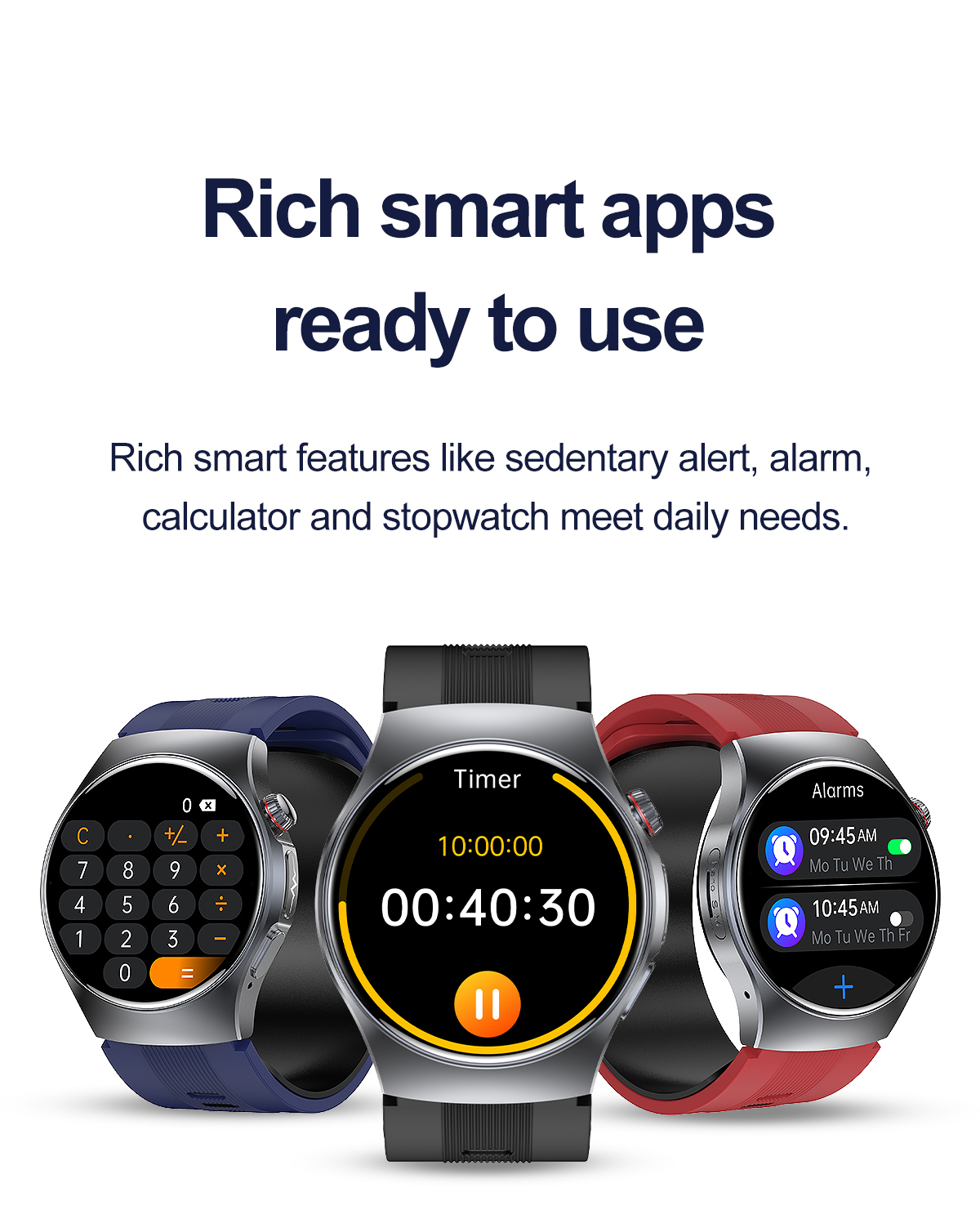

Smart Features

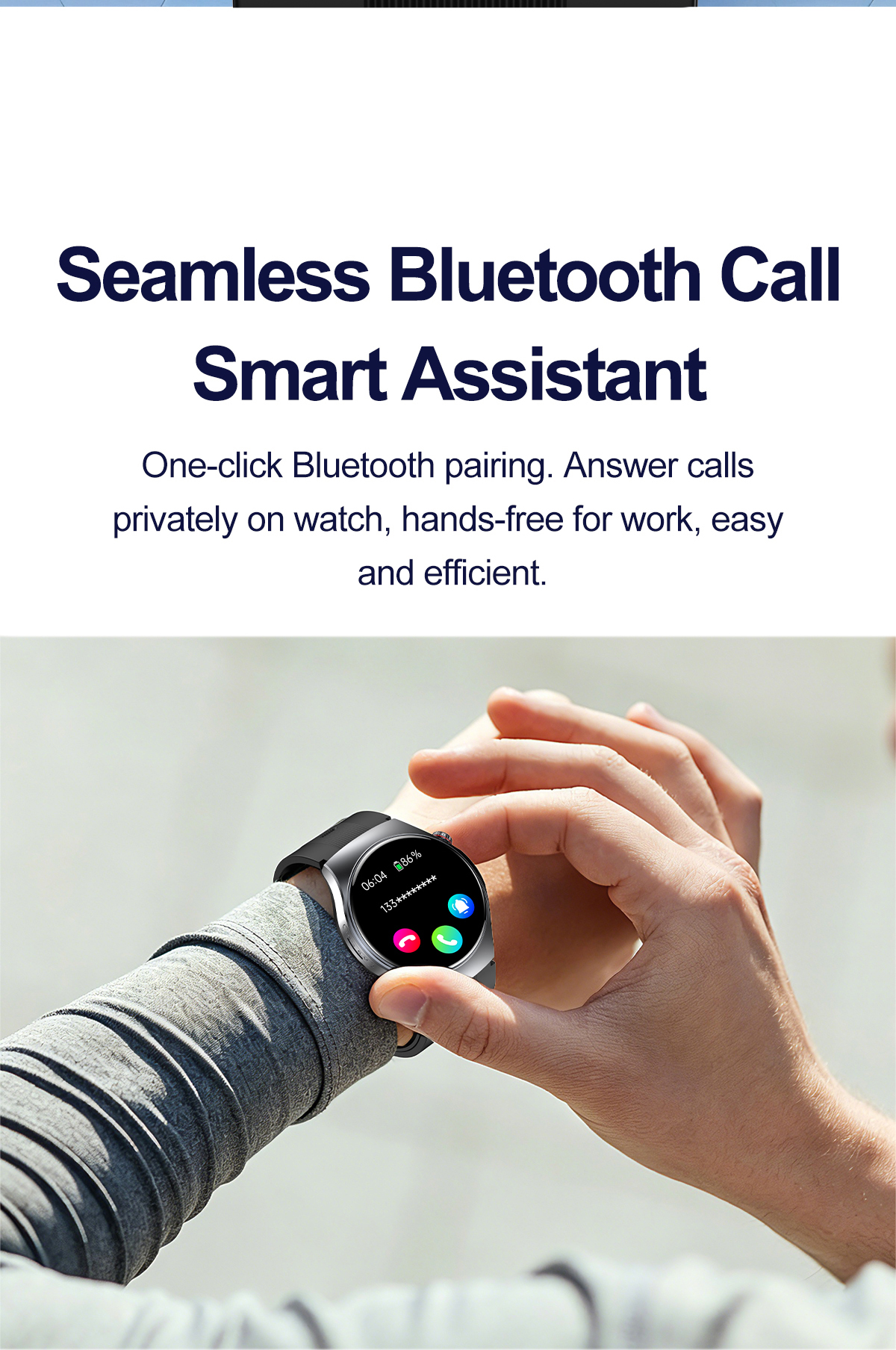

4G HD call+Bluetooth call
Smart Features
Alipay
Smart Features
flashlight
Smart Features
step counting/calorie/distance
Technical Specifications
| MCU | JL7013A7 |
| 4G chip | SCS527E |
| ECG chip | TI AFE4950 |
| Blood oxygen chip | TI AFE4950 |
| Air pump model | Murata MZB3007 |
| Air pressure sensor | MZB3004 |
| Blood pressure type | Oscillographic air pump+air bag type |
| PPG chip | RA3220 + TI AFE4950 |
| Gravity sensor | DA267 |
| Operating system | Ucos system |
| BLuetooth | BLE 5.3 |
| Screen Type | AMOLED |
| Battery Capcaity | 390 mAh |
| Endurance Time | Use for 3-7 days and standby for 20 days. |

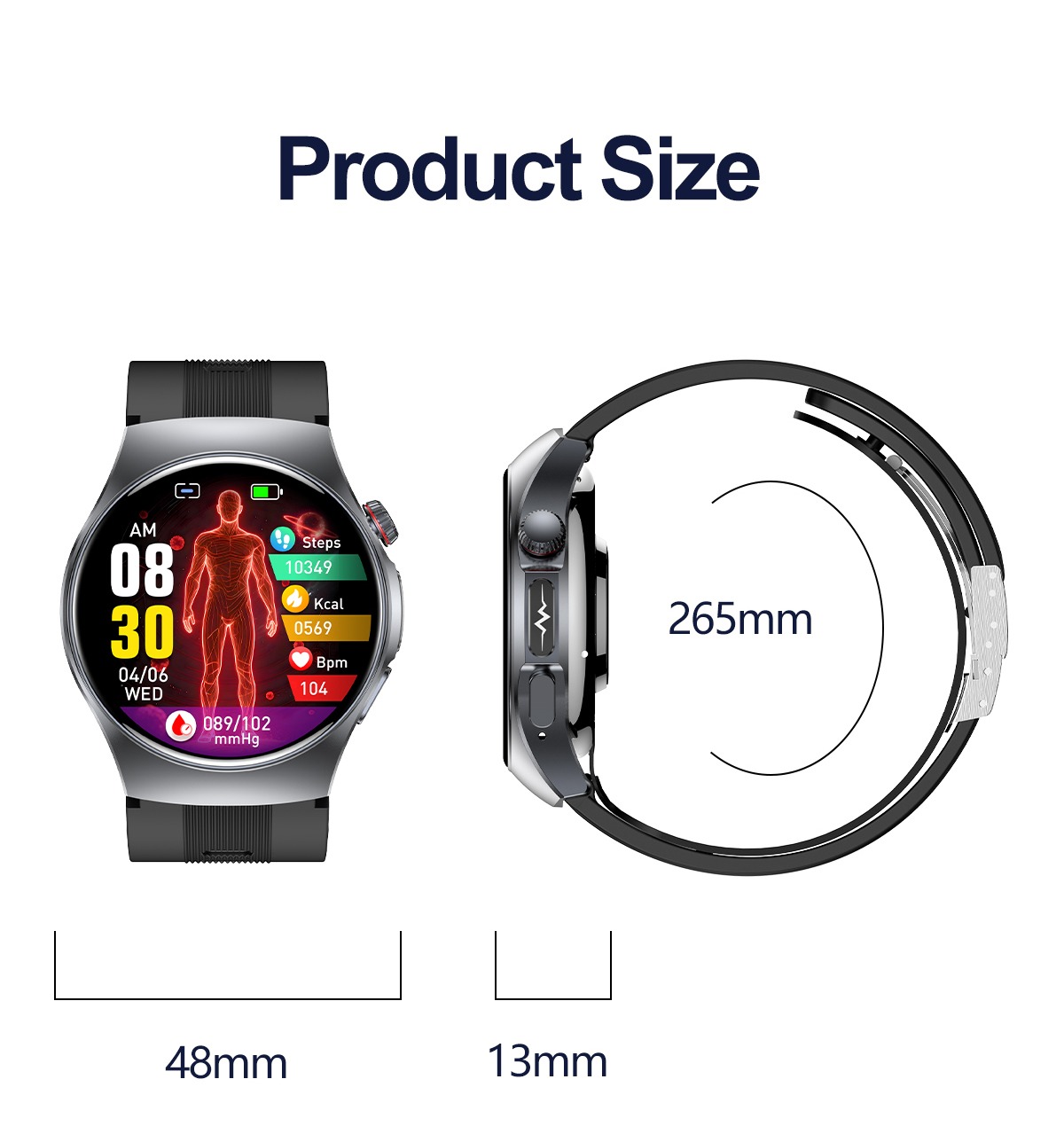

| Bracelet size | 56*50*15MM (length and width) |

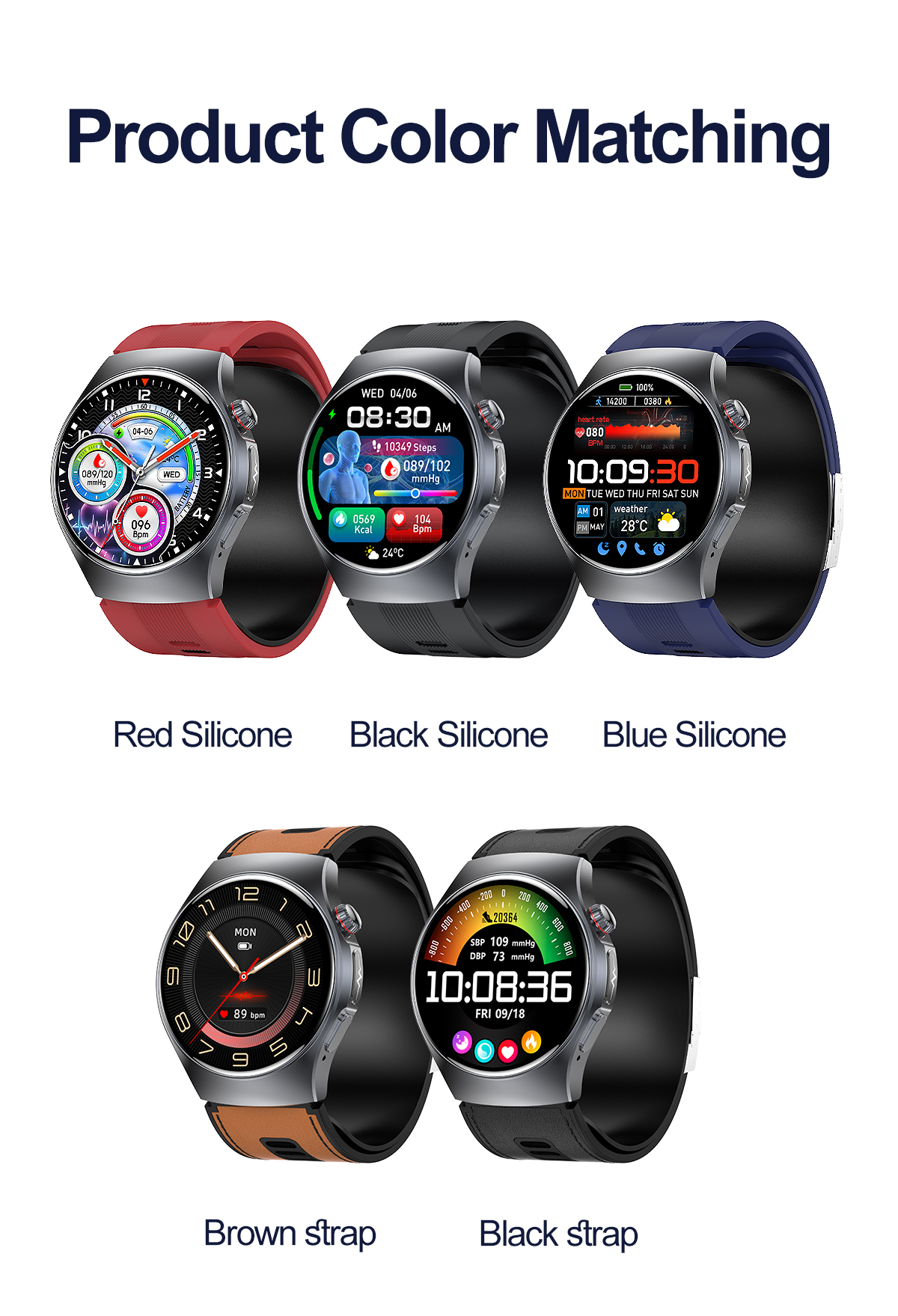

| Material | Shell: LDS+ stainless steel ECG key Bottom shell: PC+ABS sprayed with black high-gloss environmental protection paint+medical-grade high-performance conductive glass. Strap: environmentally friendly silicone/leather strap |
| Compatible system | Android 8 and above，iOS 13 and above |
Frequently Asked Questions
How accurate is the air pump blood pressure measurement?
The oscillometric air pump technology, combined with the Murata MZB3007 precision pump and MZB3004 pressure sensor, delivers clinically reliable blood pressure readings. We assist clients through CE / FCC / FDA / BIS certification processes to validate measurement accuracy for target markets.
Can the watch make calls independently?

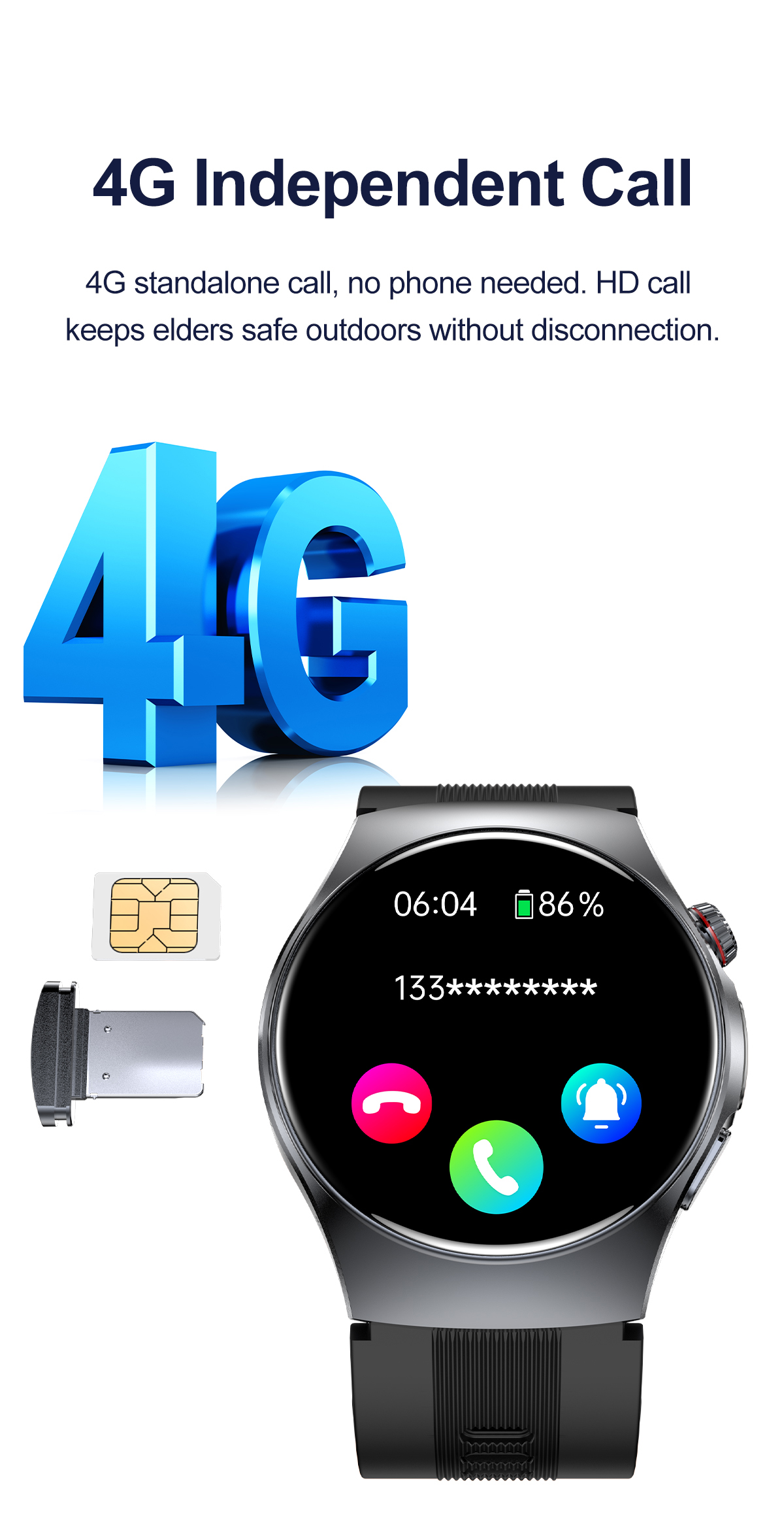

Yes. The watch supports Nano SIM card 4G HD calls as well as Bluetooth calls when connected to a smartphone. It operates on FDD/TDD 4G networks.

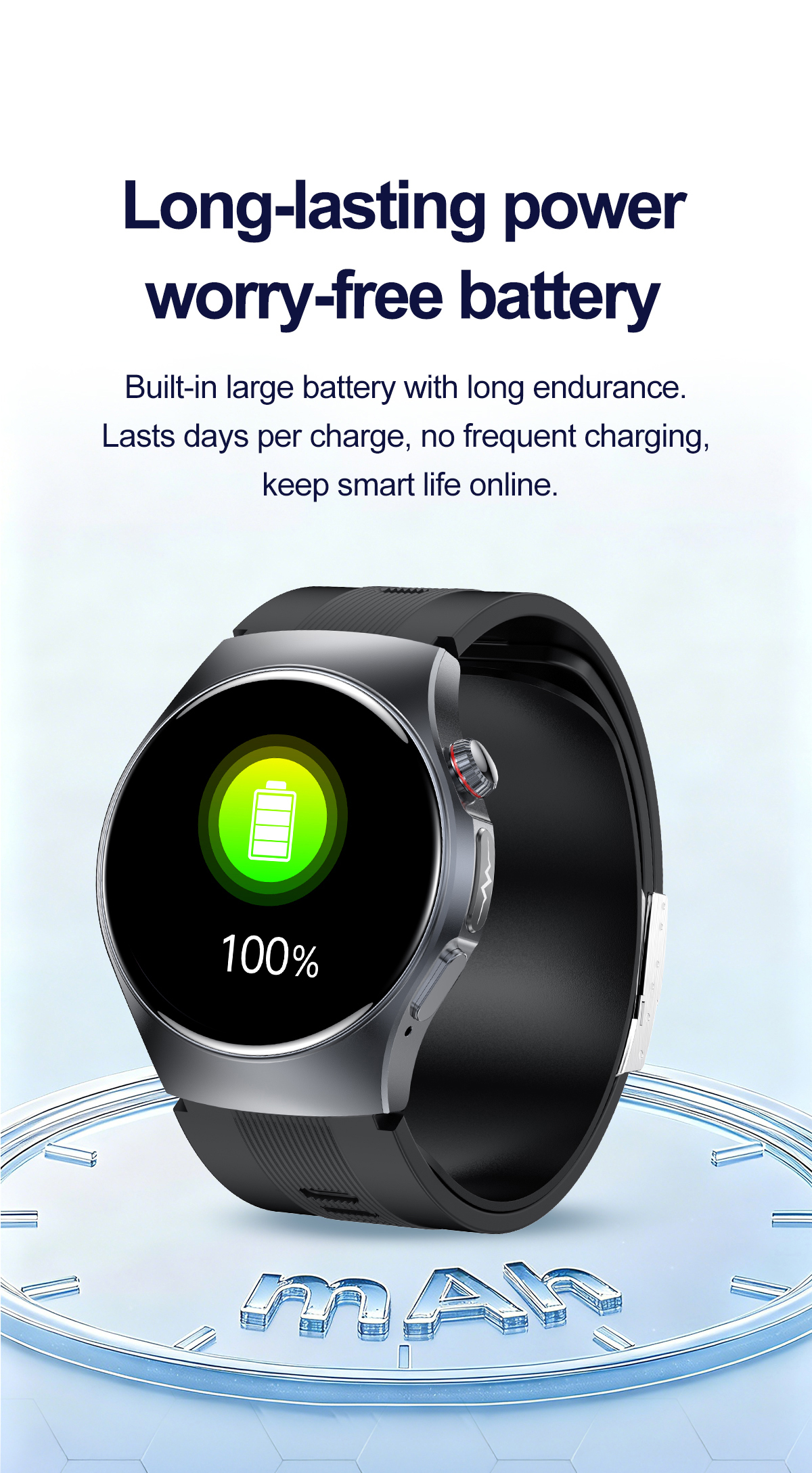

How long does the battery last?
The high-density lithium polymer battery provides 5-10 days of typical use and up to 20 days on standby, depending on usage patterns and sensor activity.
Is the device suitable for elderly users?
Absolutely. The large AMOLED display, SOS emergency function, fall detection, and remote care features make it ideal for elderly health monitoring. Family members can track real-time health data via the companion app.
What certifications are available?
We assist clients through CE, FCC, RoHS, FDA, and BIS certification processes. Our manufacturing follows ISO 13485 quality management standards for medical devices.

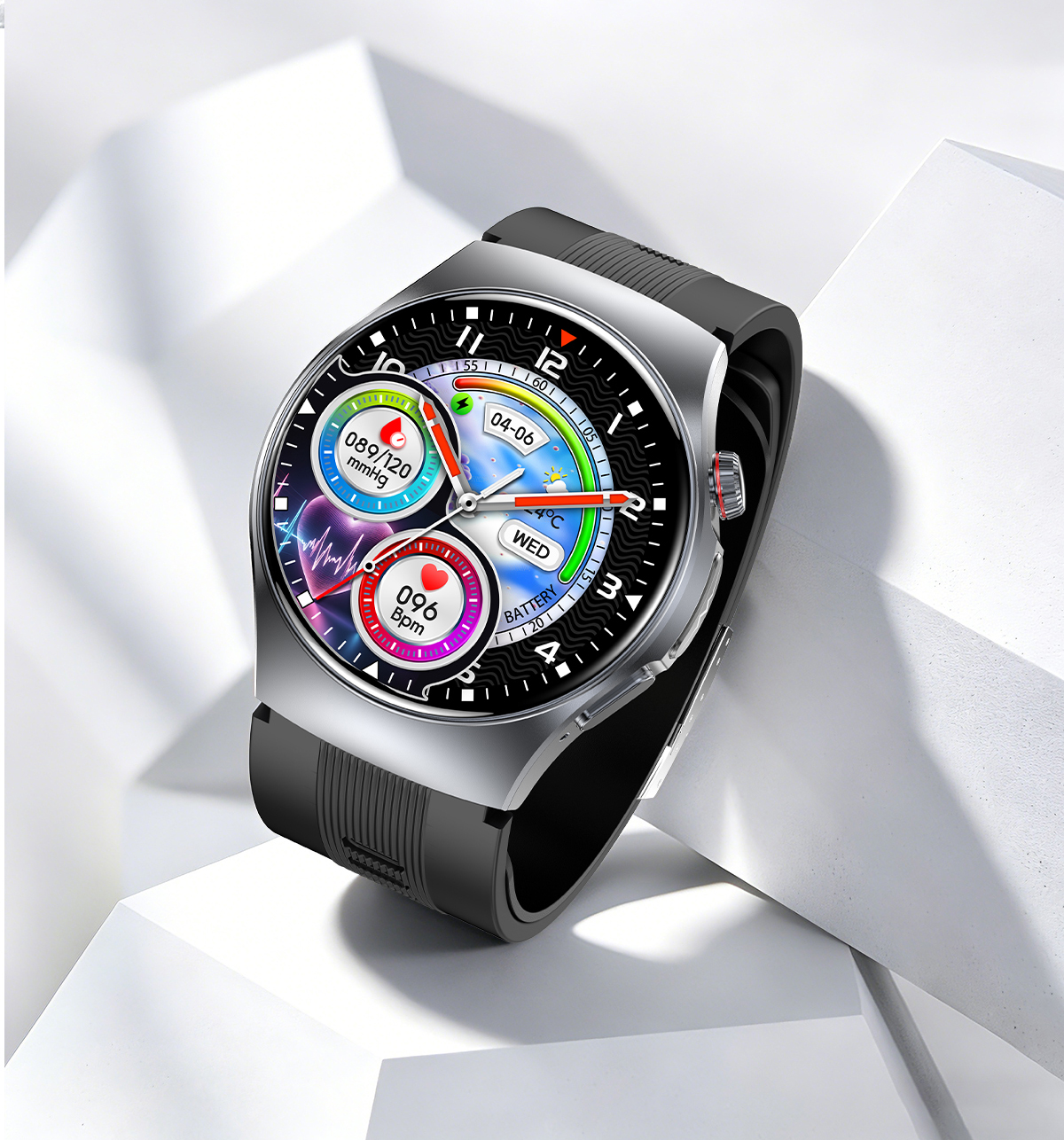

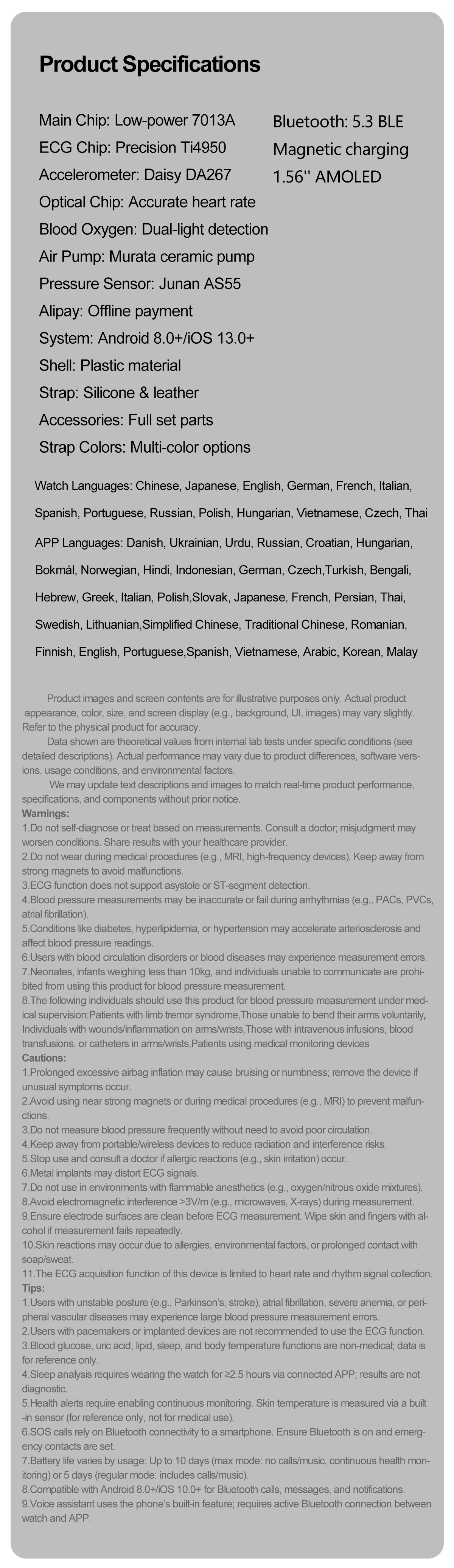

Product Details
Frequently Asked Questions
What is the main difference between the GS206 and the GS500?
Both use the same Murata MZB3007 air pump and TI AFE4950 sensor for oscillometric blood pressure trend monitoring. The GS206 features a more compact 1.56-inch AMOLED display in a 56x50x15mm form factor with a 390mAh battery (3-7 days typical use), while the GS500 has a larger 2.06-inch AMOLED in a 60x42x12mm body with 5-10 days battery. The GS206 is ideal for customers prioritizing compact size, while the GS500 suits those needing a larger display and longer battery.
Is the GS206 suitable for remote patient monitoring deployments?
Yes. The GS206 supports 4G LTE with Nano SIM for standalone connectivity, enabling real-time health data transmission including blood pressure trends, ECG, heart rate, and SpO2 readings. Combined with the companion app, healthcare providers and family caregivers can monitor patients remotely. This makes it well-suited for hospital-at-home programs, elderly care facilities, and chronic disease management initiatives.
What health sensors are integrated into the GS206?

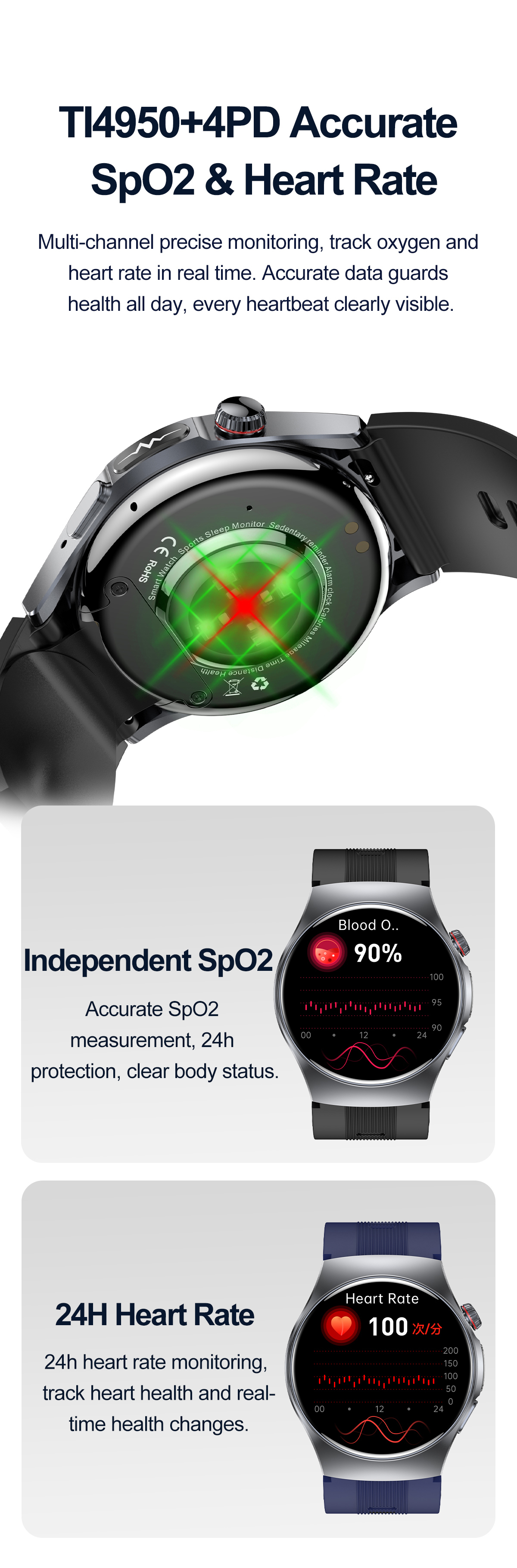

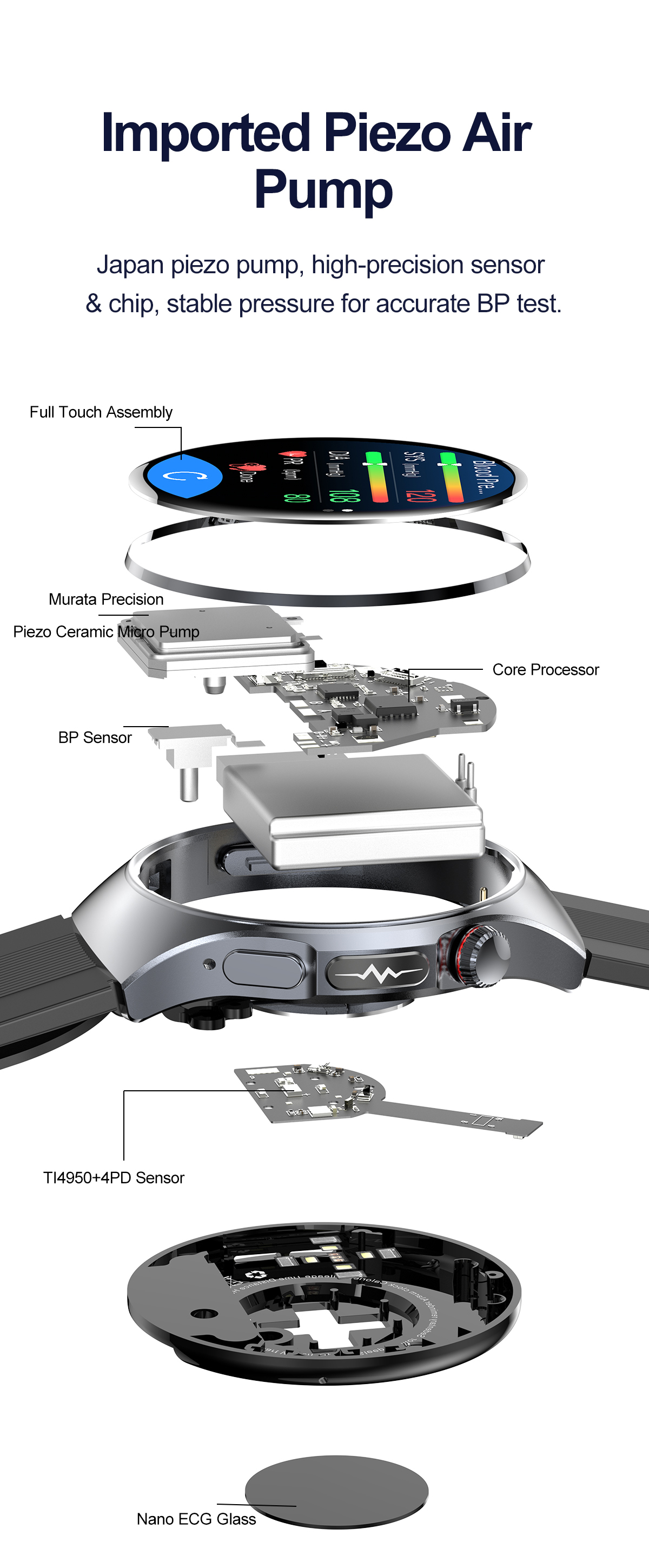

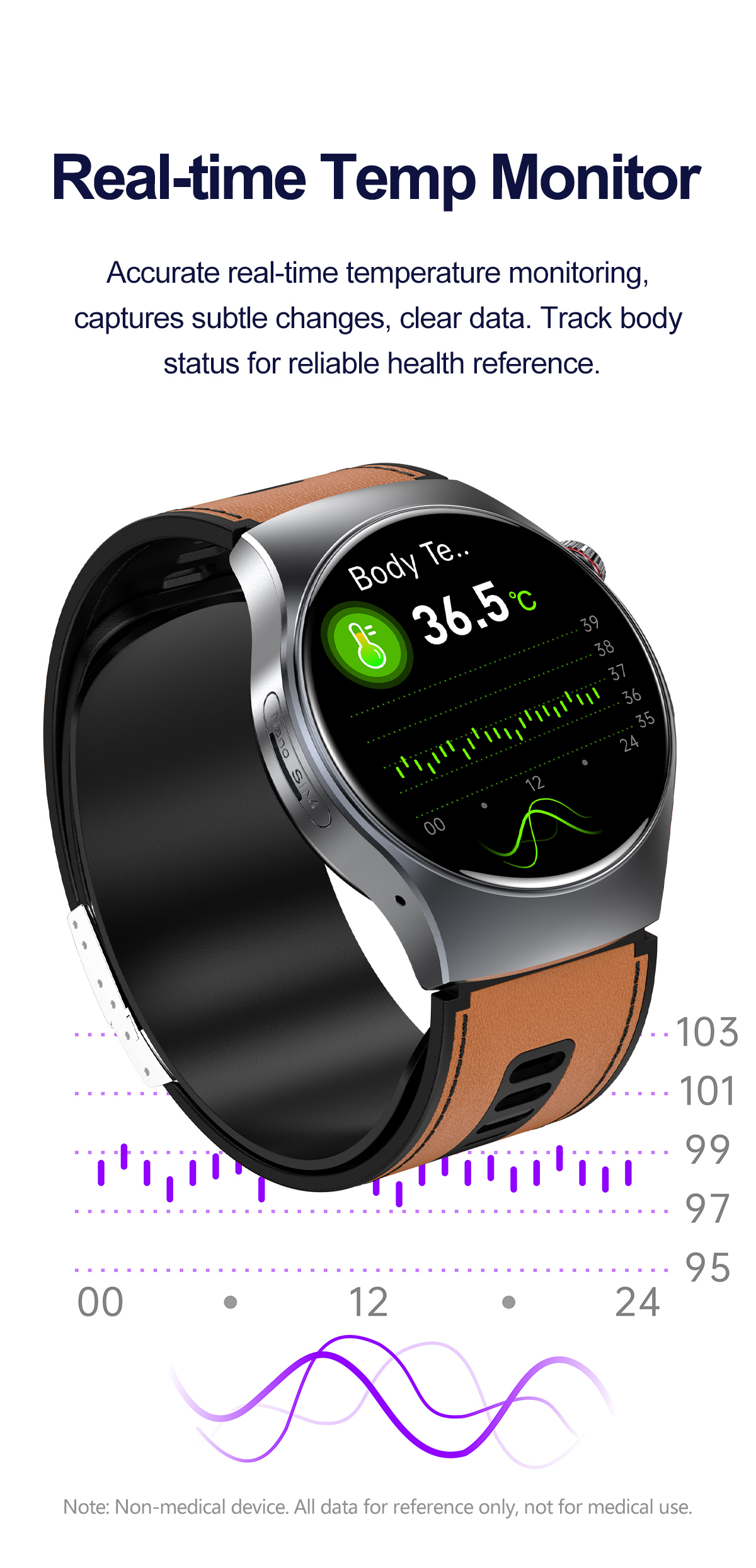

The GS206 integrates the Murata MZB3007 air pump with MZB3004 pressure sensor for oscillometric blood pressure, TI AFE4950 for ECG and blood oxygen, RA3220 4PD PPG for multi-wavelength heart monitoring, DA267 gravity sensor for motion tracking, and a contact temperature sensor. Together these enable comprehensive health trend monitoring including BP, ECG, SpO2, heart rate, temperature, and sleep analysis.
What connectivity options does the GS206 support?
The GS206 supports 4G LTE with Nano SIM card for standalone calling and data, plus Bluetooth 5.3 for connected smartphone scenarios. It runs on the Ucos operating system with the JL7013A7 main chip and SCS527E 4G chip. The device is compatible with Android 8+ and iOS 13+ for the companion app.
Can we integrate the GS206 with our existing healthcare platform?
Yes. We offer API integration support for connecting the GS206 data output to your existing healthcare platform, EHR system, or remote monitoring dashboard. Our OEM/ODM services include custom firmware configuration, private-label app development, and we support customers through the certification process. Contact jine@xdunmedical.com for technical integration details.
